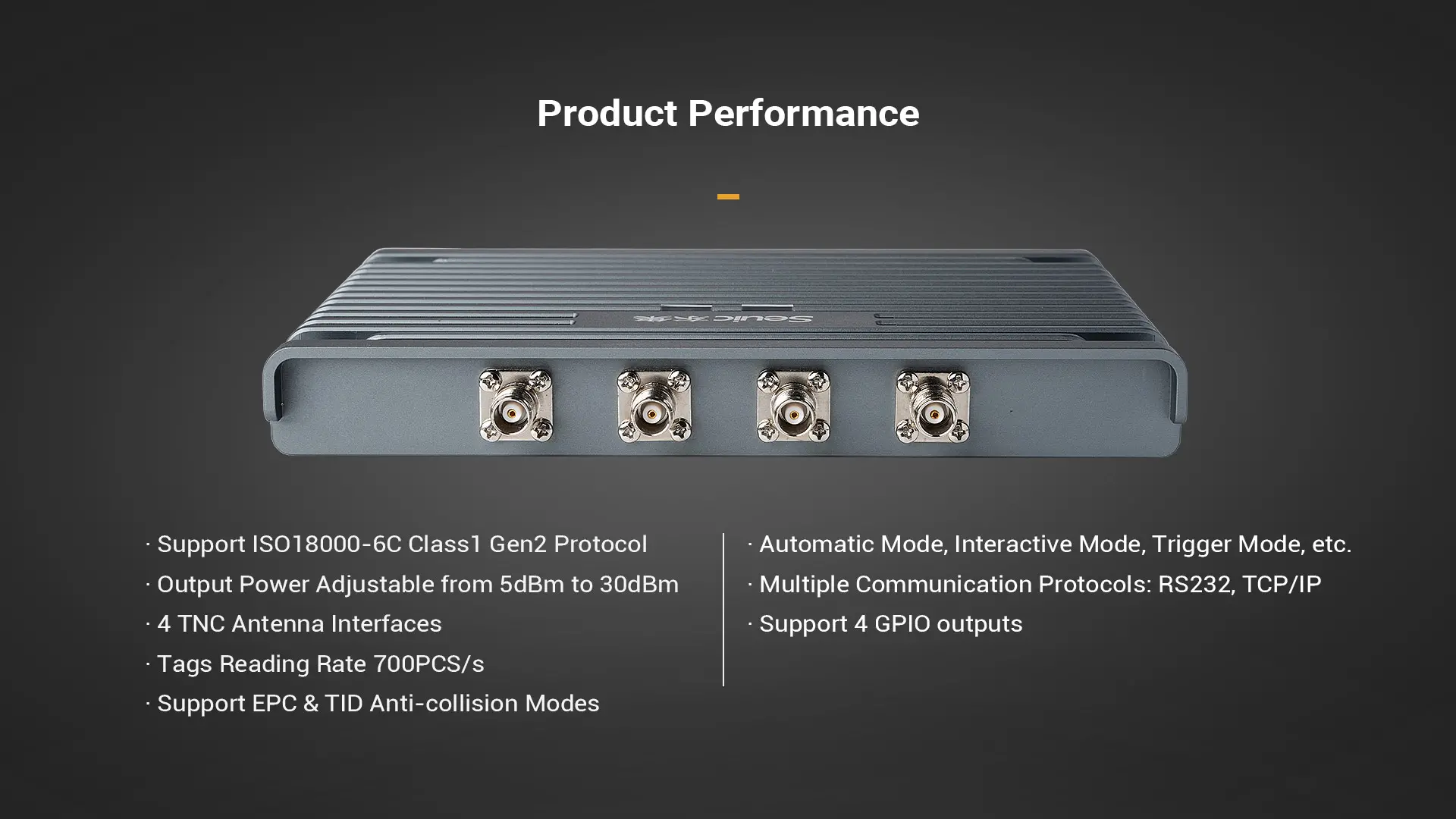

AUTOID UF3 Fixed UHF RFID Reader

AUTOID UF3 is a 4 Ports UHF reader with an Impinj E710 engine built into it. It supports RS232, TCP/IP, and a wide range of antenna specifications. It provides high reading rates and fast tag reading through proprietary and efficient signal processing algorithms. Therefore, it can be widely used in logistics, asset management, innovative stores, smart cities, etc.

Features

● Industrial lightning protection and antimagnetic design.

● 900+ tags/sec. read rate, with 4 ports lightning working atennna switch speed.

● Support multiple development platform like Windows, Android and Linux OS.

● 4 external RP-TNC Antennas, Impinj E710.

AUTOID UF3 Fixed UHF RFID ReaderAUTOID UF3 Fixed UHF RFID Reader

Specifications
Performance Characteristics
Code Support
EPC C1 GEN2/ISO18000-6C/6B
Working Frequency
860Mhz–960Mhz (varies from different countries and regions)
Read Speed
900pcs tag/second
Output Power
5dBm to 30dBm adjustable, +/-1.0dBm
Communication Protocol
RS232, TCP/IP
Input and Output
2 GPIO input and 2 GPIO output (isolated by optical coupler)
Status Indication
Indicator, RFID status indicator, buzzer
Max Receive Sensitivity
-86 dBm monostatic
Power Supply
9-12VDC
Power Consumption
Maximum 1.2A
POE
POE(802.3af)
POE+(802.3at)
Temperature
Working temperature: -20°C to + 60°C
Storage temperature: -25°C to + 80°C
Sealing Grade
IP54
Antenna Interface
RP-TNC*4
Dimension
230(L) × 156(W) × 30(T)mm
INTERFACE DEFINITION
Power Supply
Refer to the specifications for detailed parameters
USB Interface
Standard USB interface
Communication Serial Ports RS232 (DB9 Female)
Refer to the specifications for detailed parameters
General Ports for Input and Output GPIO (DB15 Female)
Refer to the specifications for detailed parameters
TCP / IP Internet Port
RJ45
RP-TNC Antenna Interface
ANT1~ANT4
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
