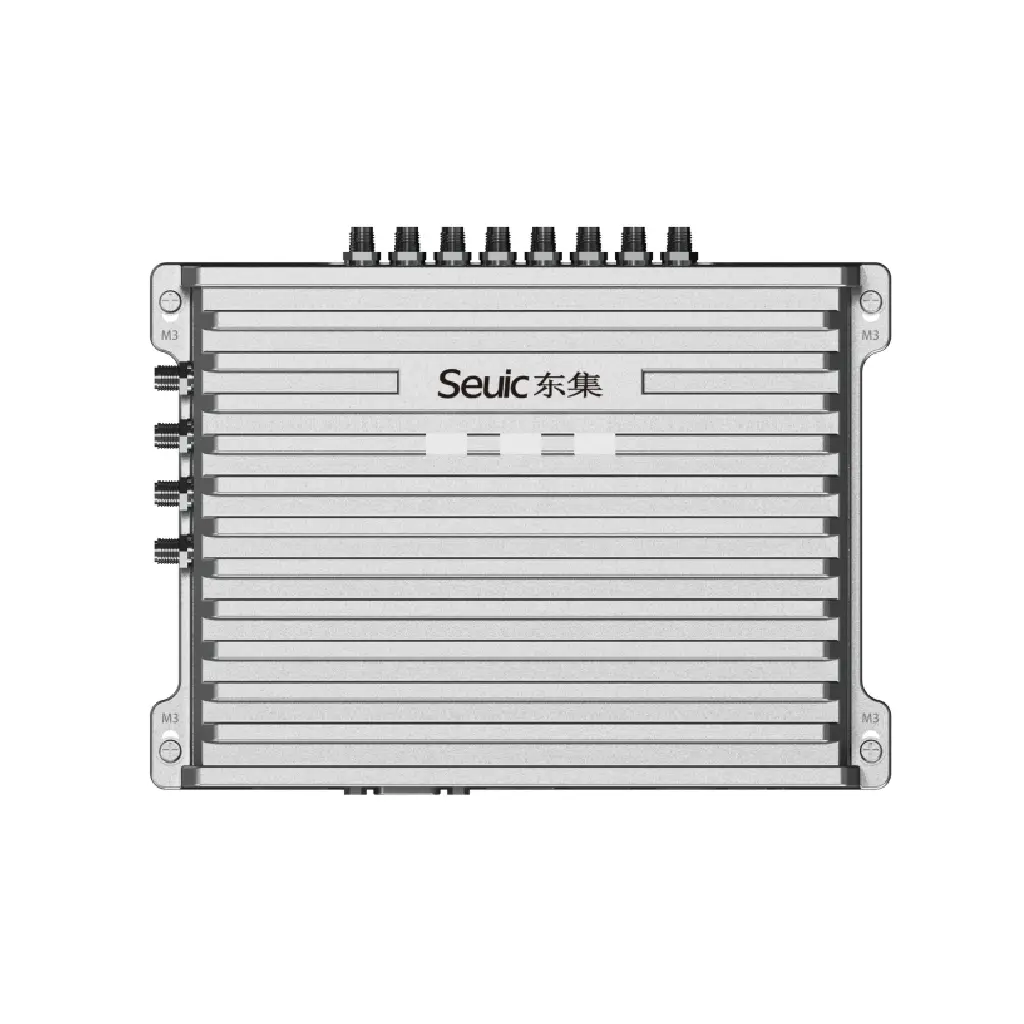

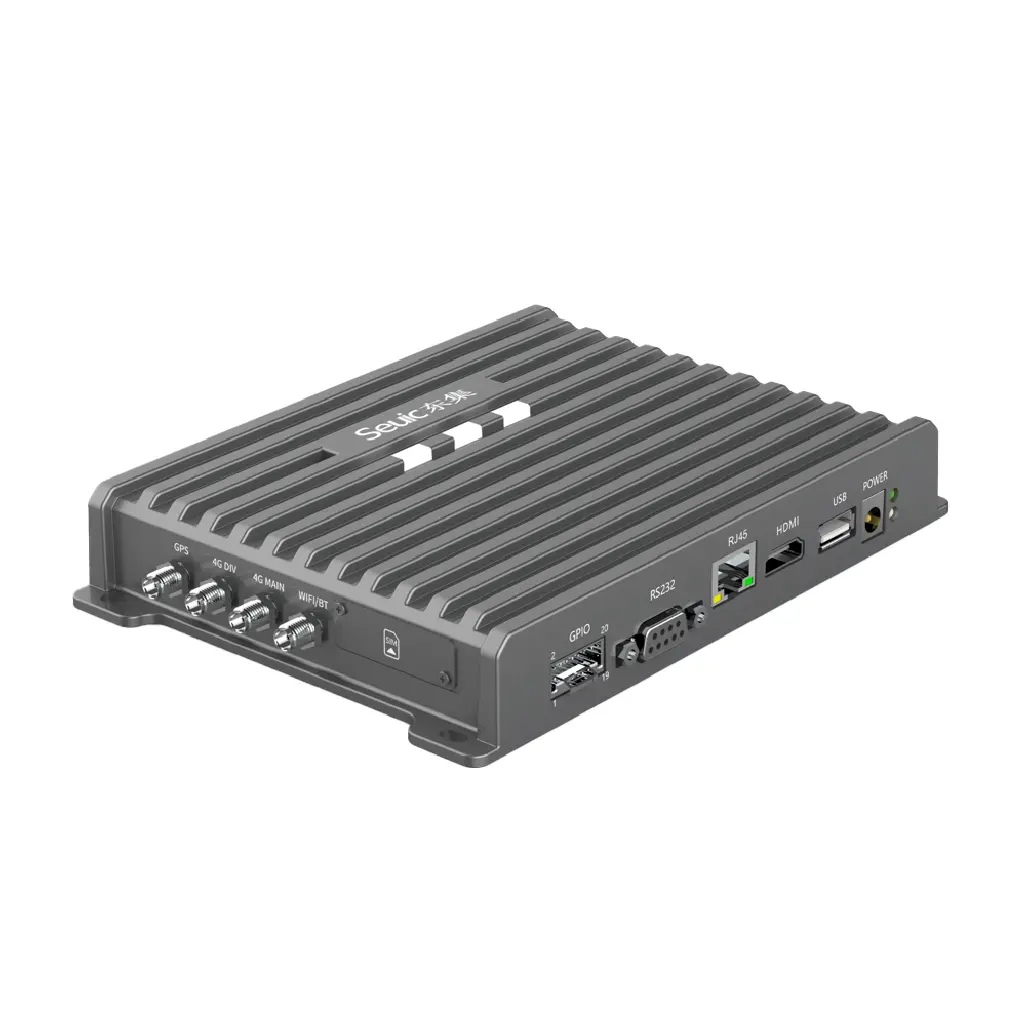

AUTOID UF3-S Fixed UHF RFID Reader

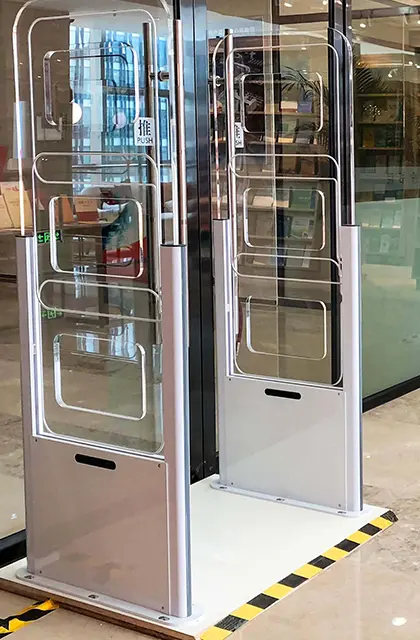

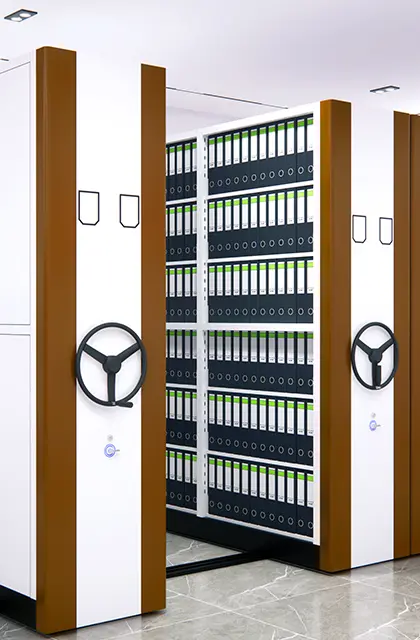

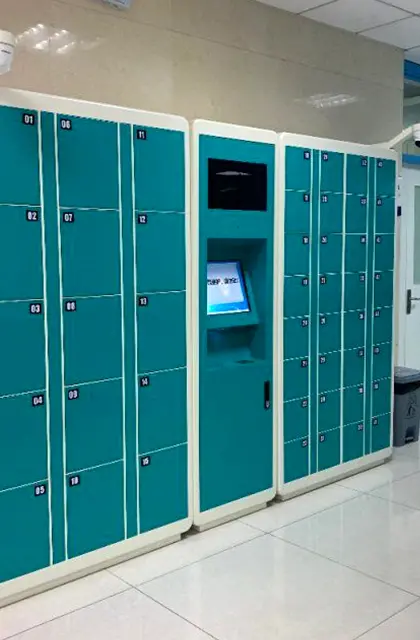

SEUIC independently developed the Impinj R2000 reading and writing engines for AUTOID UF3-S readers. The unit can support TCP/IP, RJ45, RS232, Wi-Fi, 4G, and other communication methods with its Android operating system. In addition, due to its small size and PoE capabilities, it is easily deployed. It can be used widely in asset management, smart manufacturing, and innovative retail stores for greater efficiency.

Features

● Android OS; it can host embedded applications, so data can be parsed directly on the reader.

● Small size, with POE power supply, support MDM remote batch deployment.

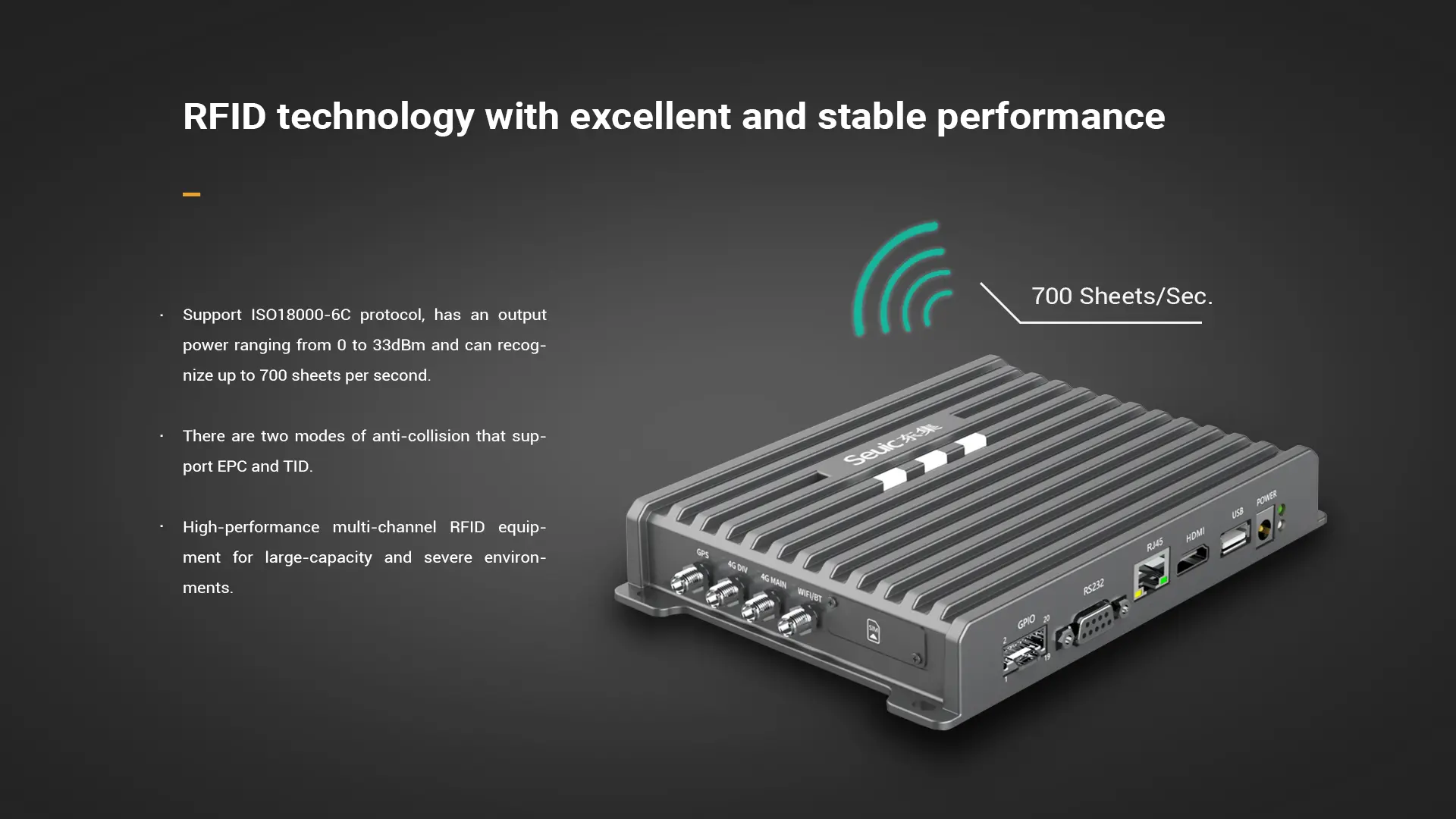

● 700+ tags/sec. read rate, with 8 ports lightning working atennna switch speed.

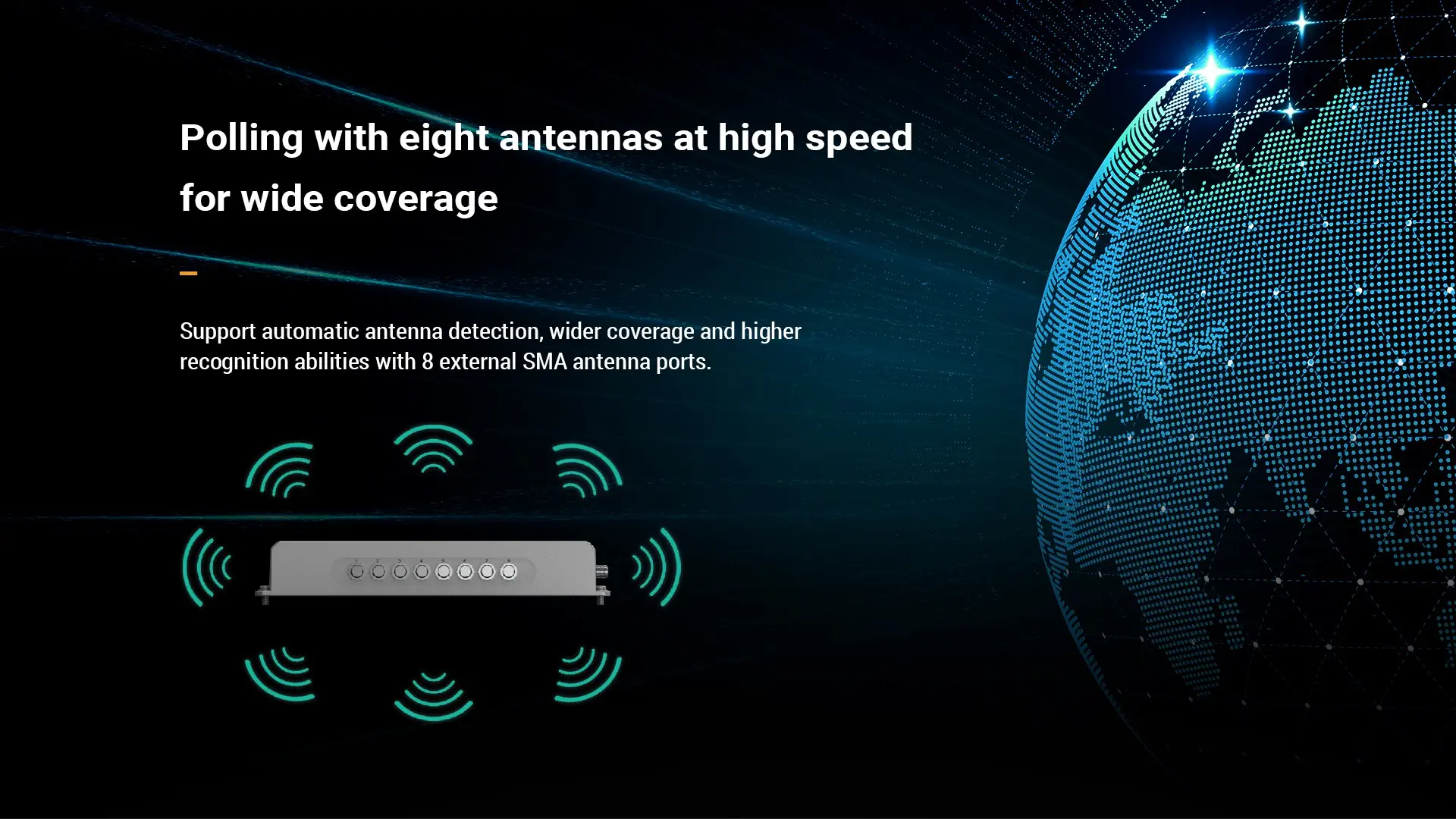

● 8 external SMA Female Antennas, Quad-core 1.3 GHz platform, Android 10 OS, 2 GB/16 GB, POE, Impinj R2000.

AUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID ReaderAUTOID UF3-S Fixed UHF RFID Reader

Specifications
Product Specification
Label Protocol
EPC C1 GEN2 / ISO18000-6C
Working Frequency
840Mhz - 960Mhz (can be adjusted according to the requirements of different countries or regions)
Max Receive Sensitivity
≤-80dbm
Isolation Among Antenna Ports
≥30dB (within the working frequency range)
Output Power
0-33dBm adjustable, +/-1.0dBm
Multi-tag Performance
>700 fps (8dBi, 3m feeder line)
Tag Reading Performance
>8m (9662 white card, outdoor open environment, 8dBi, 3m feeder line）
Tag Writing Performance
＞4m (9662 white card, outdoor open environment, 8dBi, 3m feeder line)
CPU
Cortex™-A53 Quad core 1.3 GHz
Operating System
Android 10
Storage
2GB+16GB
Communication Protocol
TCP/IP, RS232, WIFI (2.4G/5G dual-band, IEEE802.11a/b/g/n), 4G compatible
Interface
8*SMA antenna interface, GPS antenna, 4G main and auxiliary antenna interfaces, WIFI, 4G SIM card slot, DC 9~24V, 4*USB 2.0
Input and Output
Support multi-channel optocoupler isolation GPIO, 4 channels for input, 4 channels for output, isolation voltage VRMS>3kV, applied voltage range 5-24V
Power Supply
9-24VDC, POE power supply
POE
Support IEEE802.3-AF protocol; input voltage DC44v-57v; power 13w power supply wire core 12+, 36-; transmission distance 10-100m
Power Consumption
≤1.5A (12V power supply)
Environmental Characteristics
Working temperature: -4℉/-20℃ to +140℉/+60℃
Storage temperature: -40℉/-40℃ to 185℉/+85℃
Working humidity: 5%～95%RH, no condensation
Waterproof and Dustproof of Industrial Grade
IP54
Dimensions
7.0 in. L x 5.0 in. W x 1.1 in. H
180mm L * 128mm W * 28mm H
Weight
≤ 21 oz. / 600g (w/o packaging)
≤ 42.3 oz. / 1.2Kg (w packaging)

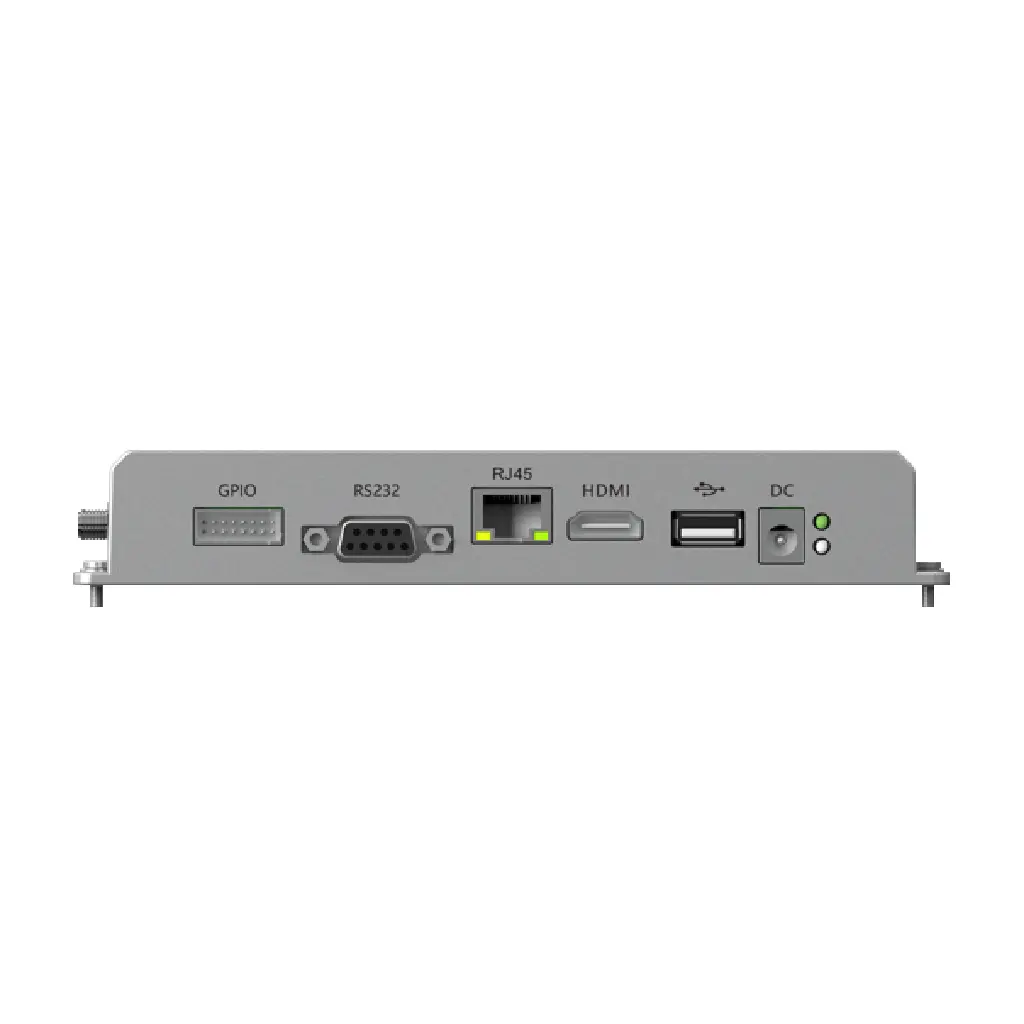

Product Interfaces
Power interface(DC JACK)
Refer to the specifications for detailed parameters
Communication Serial ports RS232 (DB9 Female)
Refer to the specifications for detailed parameters
USB Interface
USB-A
HDMI Interface
Standard HDMI interface
General-purpose Input and Output Interface
GPIO
TCP/IP Network Interface
RJ45
SMA Antenna Interface
ANT1~ANT8 (SMA female)
GPS Antenna Interface
SMA female
4G Auxiliary Communication Antenna Interface
SMA female
WIFI/antenna Interface
SMA female
4G communication SIM card slot
Standard SIM card

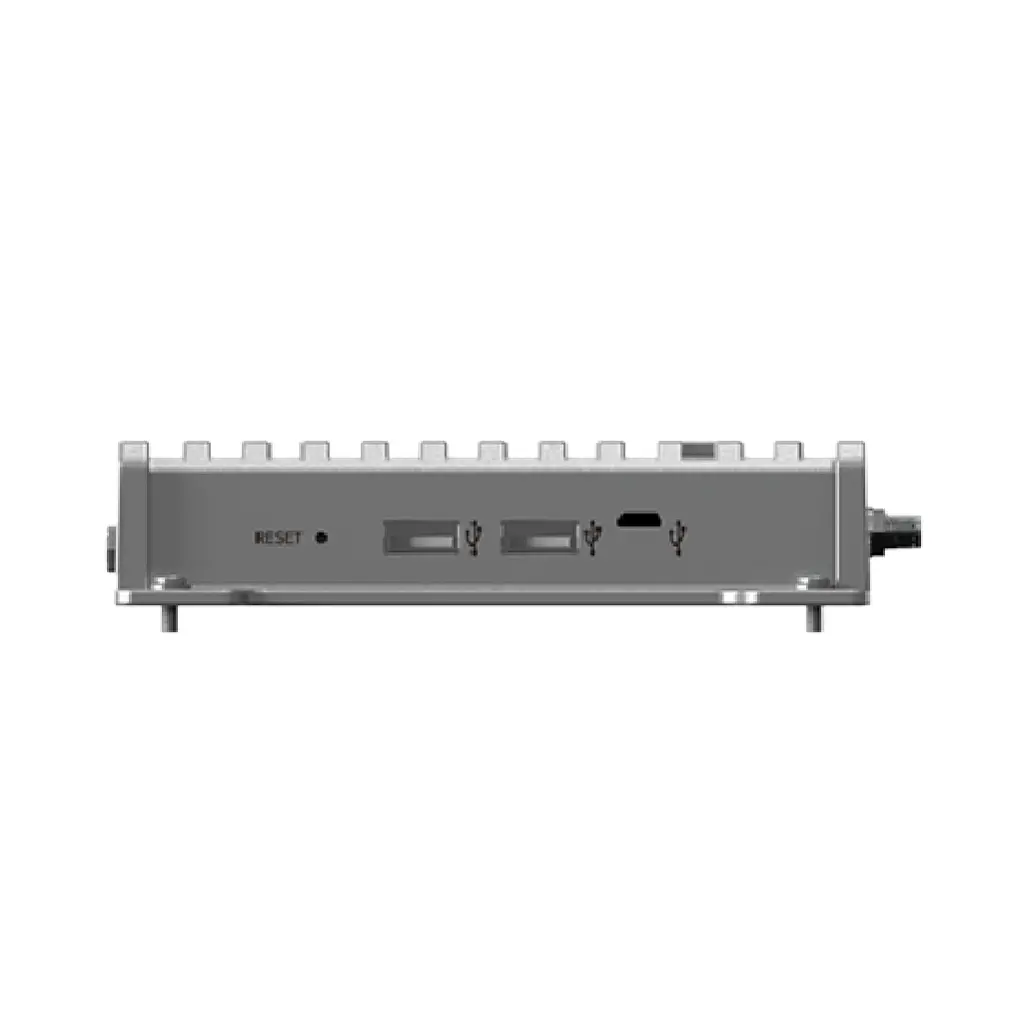

Debugging/ Download USB Interface
Micro USB
Button
System reset button
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
