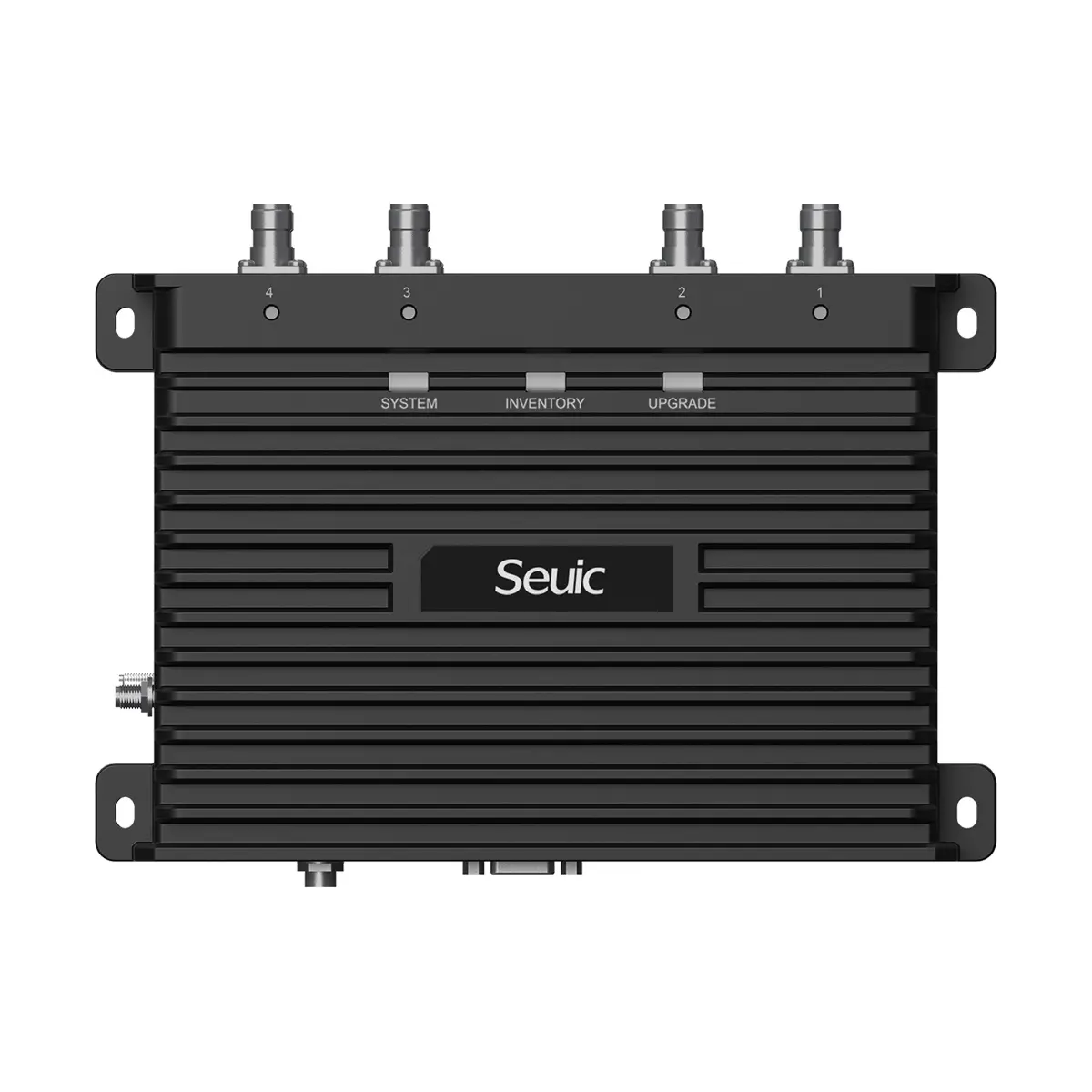

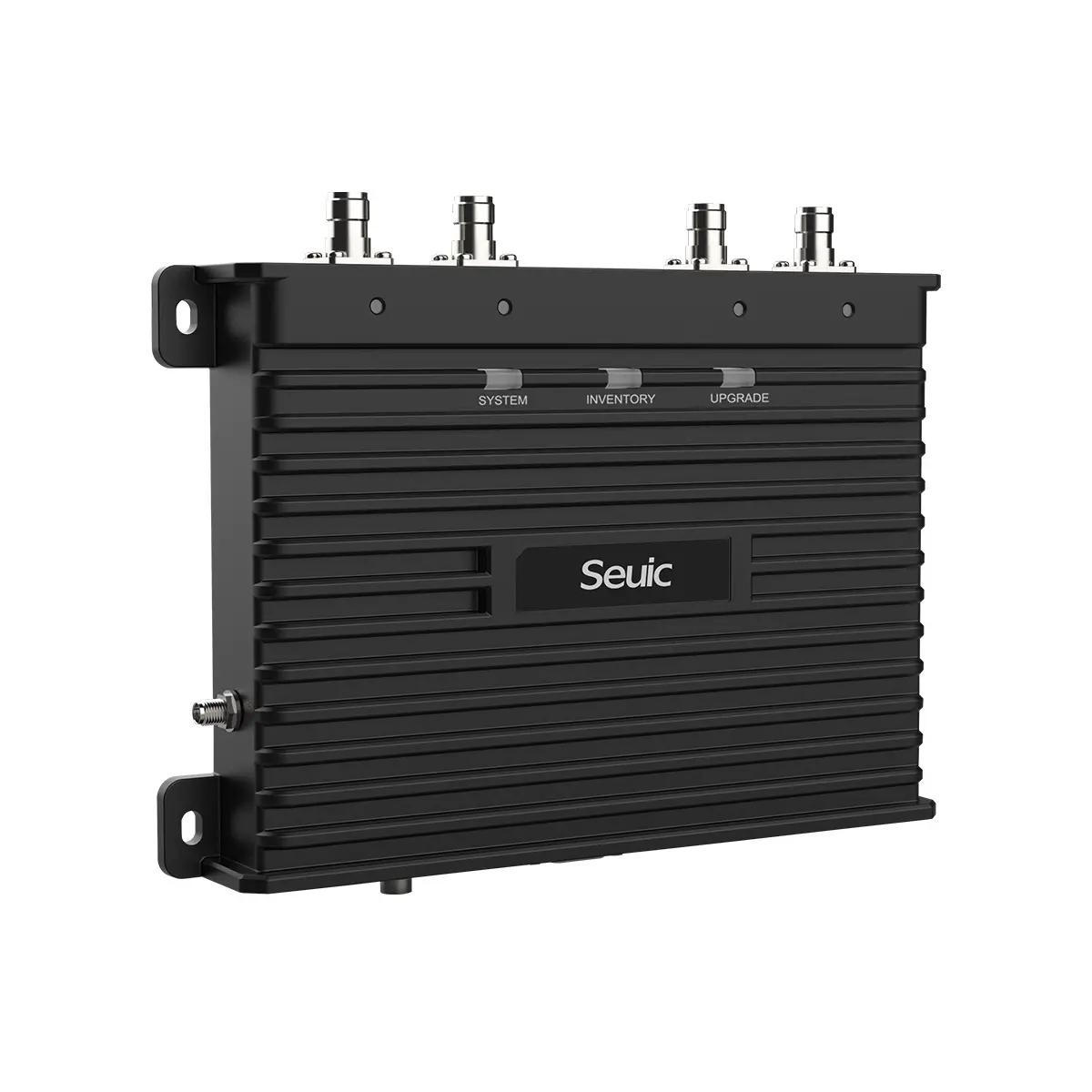

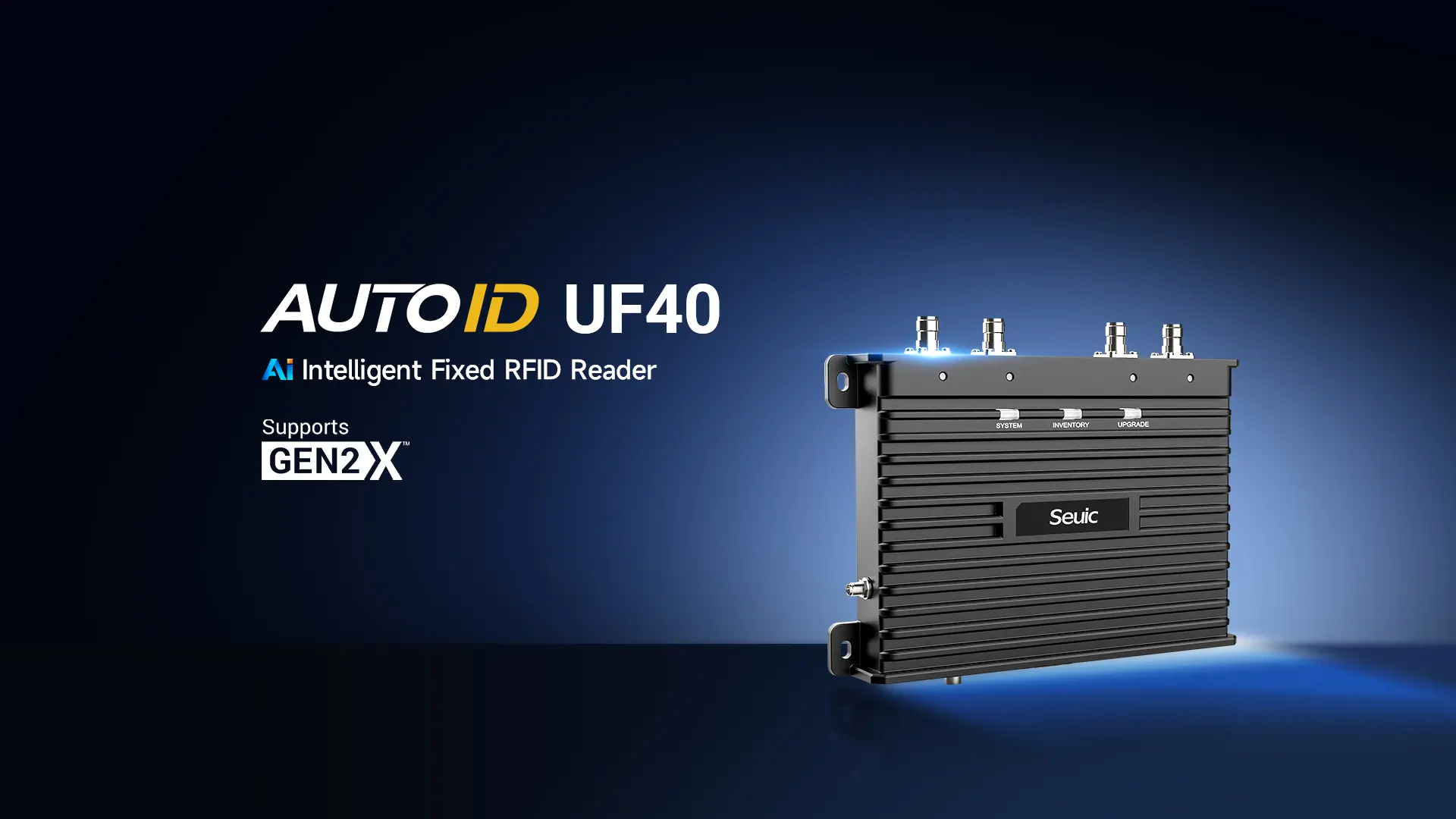

AUTOID UF40 Fixed UHF RFID Reader

The AUTOID UF40 is a 4-channel split-type fixed RFID reader developed in-house by Seuic and powered by a Linux-based system. It supports multiple protocol interfaces including RS232 and TCP/IP, and is compatible with a wide range of antenna types. Equipped with proprietary high-efficiency signal processing algorithms, the UF40 delivers fast, high-accuracy tag reading and write performance.

Features

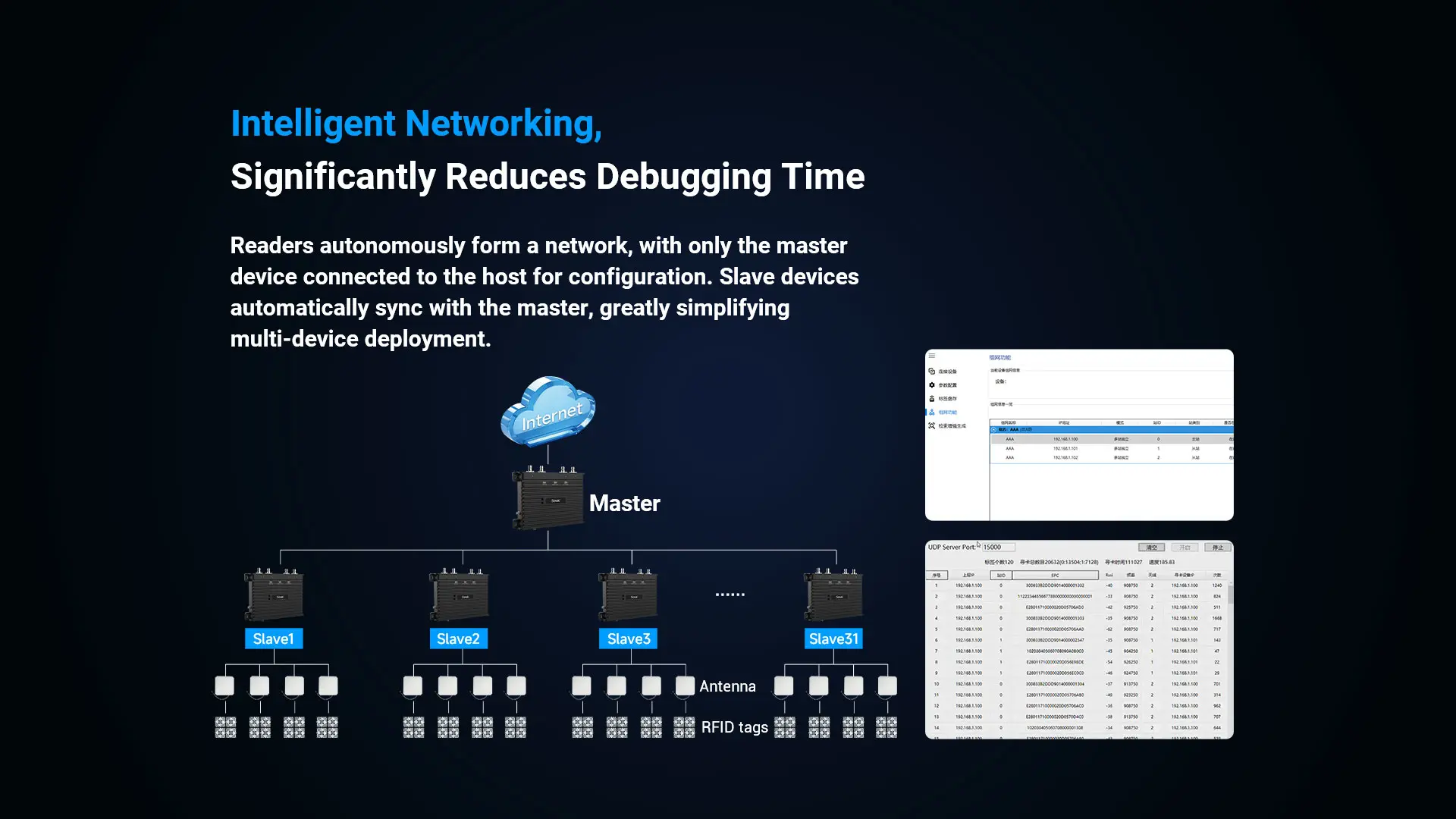

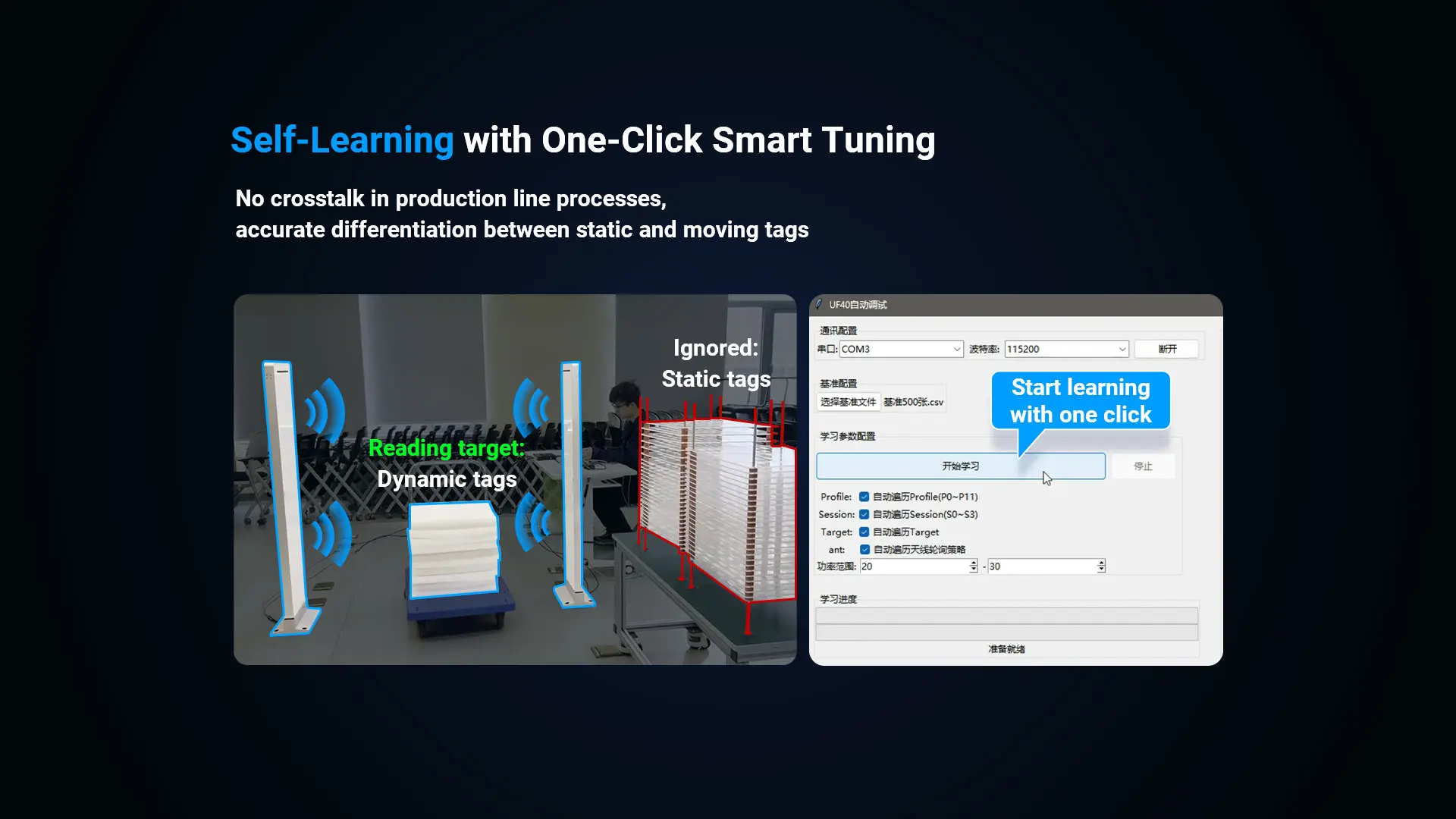

● Smart AI enables auto debugging, fast networking, accurate label identification.

● E710 module supports Gen2X, reads up to 1300 tags/sec.

● Industrial design with PoE power, built-in relay, 12–48V wide voltage.

AUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID ReaderAUTOID UF40 Fixed UHF RFID Reader

Specifications
Performance Characteristics
Code Support
EPC Class1 Gen2 / EPC Class1 Gen2X / ISO18000 - 6C
Working frequency
860MHz - 930MHz (adjustable according to different national or regional requirements)
Output Power Range
1-33dBm adjustable
Power Adjustment Step
1dB
Maximum Reading Rate
Up to 1300 tags / second
Reading Distance
>10m (30dbm, 9662 white card, outdoor open environment, 9dBiC circularly polarized antenna)
Writing Performance
＞5m (30dbm, 9662 white card, outdoor open environment, 9dBiC circularly polarized antenna)
CPU

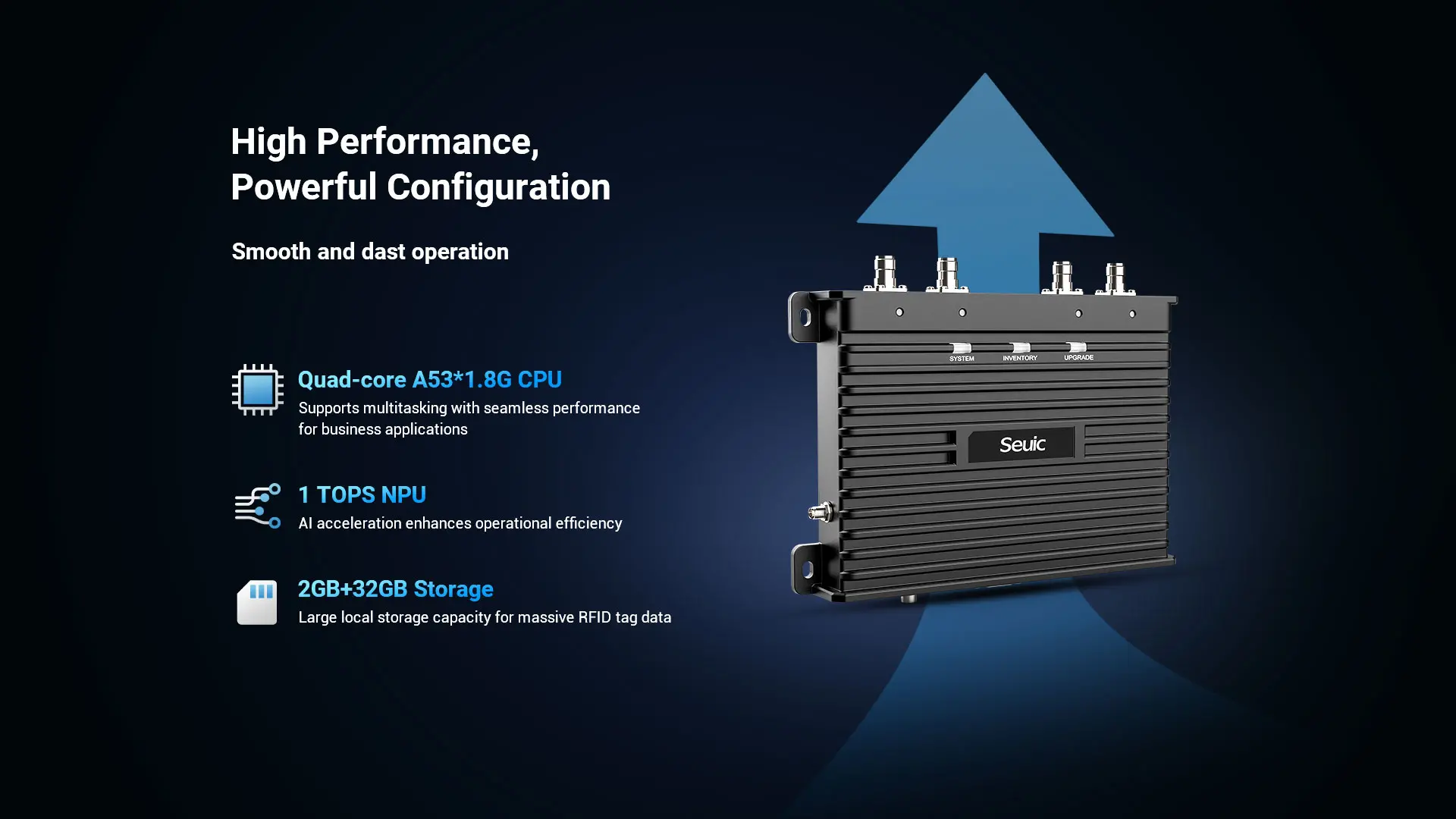

Cortex ™ - A53 Quad core 2.0 GHz
Operating System
Linux 5.4
Storage
2GB + 32GB
Communication Protocol
TCP/IP, RS232, WIFI (2.4G / 5G dual - band, IEEE802.11 a/b/g/n/ac)
Interfaces
Refer to the specifications for detailed parameters
Input and Output
Refer to the specifications for detailed parameters
Max Receive Sensitivity
-87dBm (Gen2 protocol)
-93dBm (Gen2X protocol)
Power Supply
12 - 48VDC, standard adapter 24V/2A, supports POE power supply
Power Consumption
Maximum 1.2A
POE
Refer to the specifications for detailed parameters
Power Consumption
≤1.5A (24V power supply)
Temperature
Operating temperature: -20℃ to +60℃
Storage temperature: -25℃ to +80℃
Operating humidity: 5%～95%RH, non - condensing
Sealing Grade

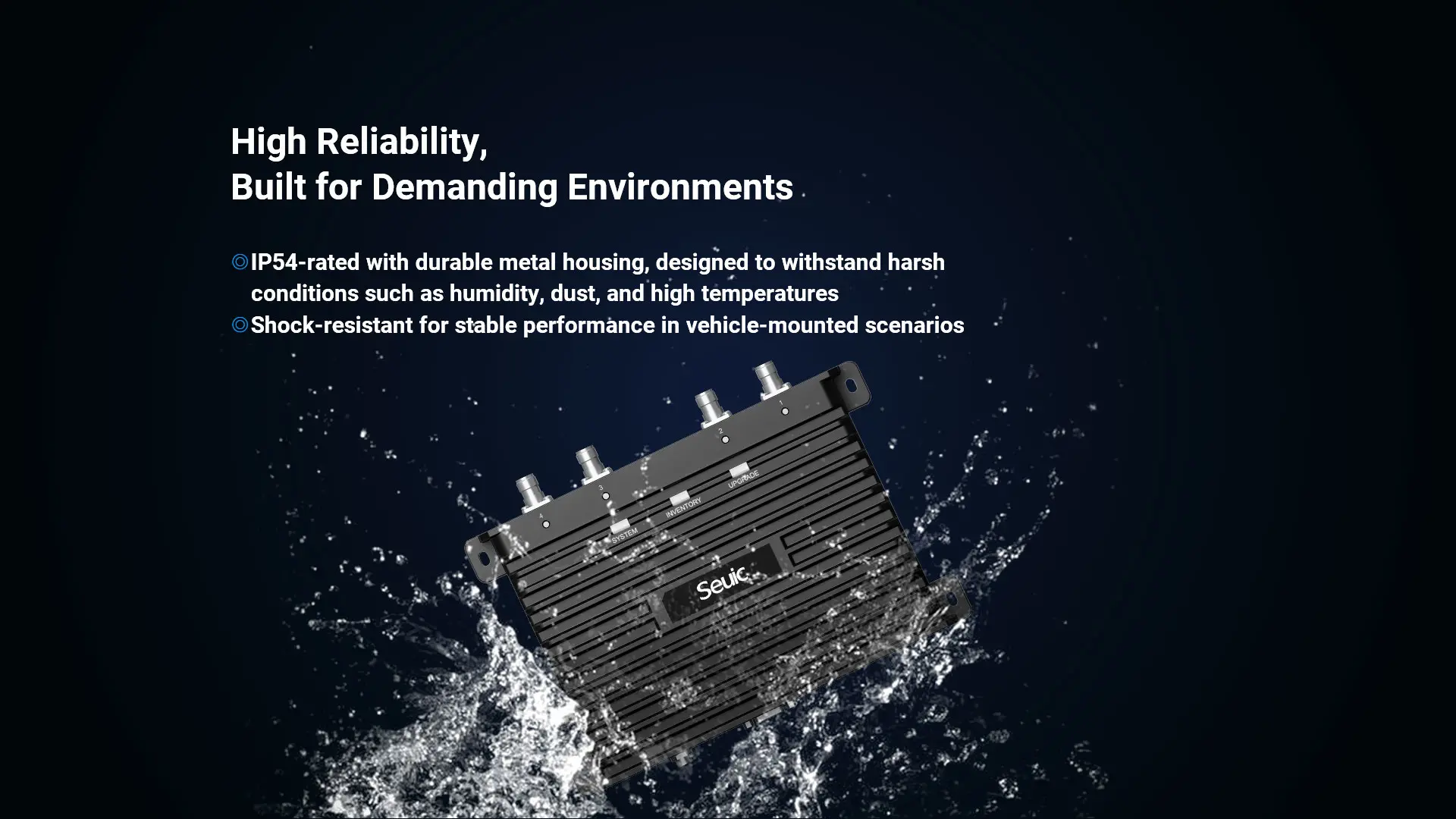

IP54
Dimension
230(L) × 150(W) × 32(T)mm
Weight
≤1160g (bare machine) ≤1850g (packaged)

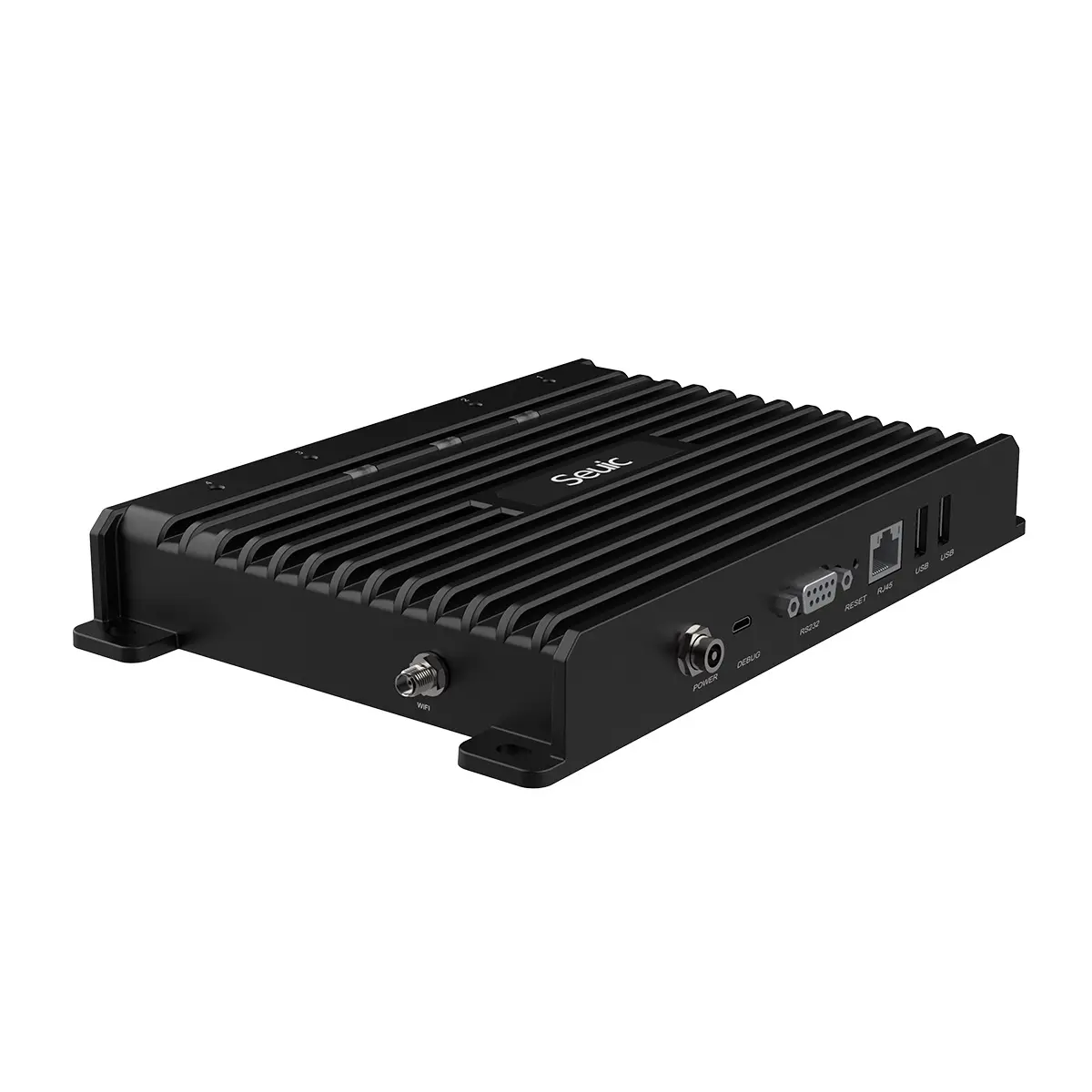

INTERFACE DEFINITION
Power Supply
1*DC JACK
USB Interface
USB interface*2 (USB-A)
TCP/IP Network Interface
1 * RJ45
System Reset Button
1 *
Serial Communication Interface
1 * RS232 (DB9 Female)
Debug/Download USB Interface
1 * Micro USB
Antenna Interfaces
RP-TNC * 4, ANT1 ~ ANT4 (RP-TNC Female)
WIFI
1 * (SMA Female)
General Purpose Input/Output Interfaces
GPIO * 2
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
