Dimensions
6.3 in. L x 3 in. W x 0.5 in. H
161 mm L x 77 mm W x 13.6 mm H
Display

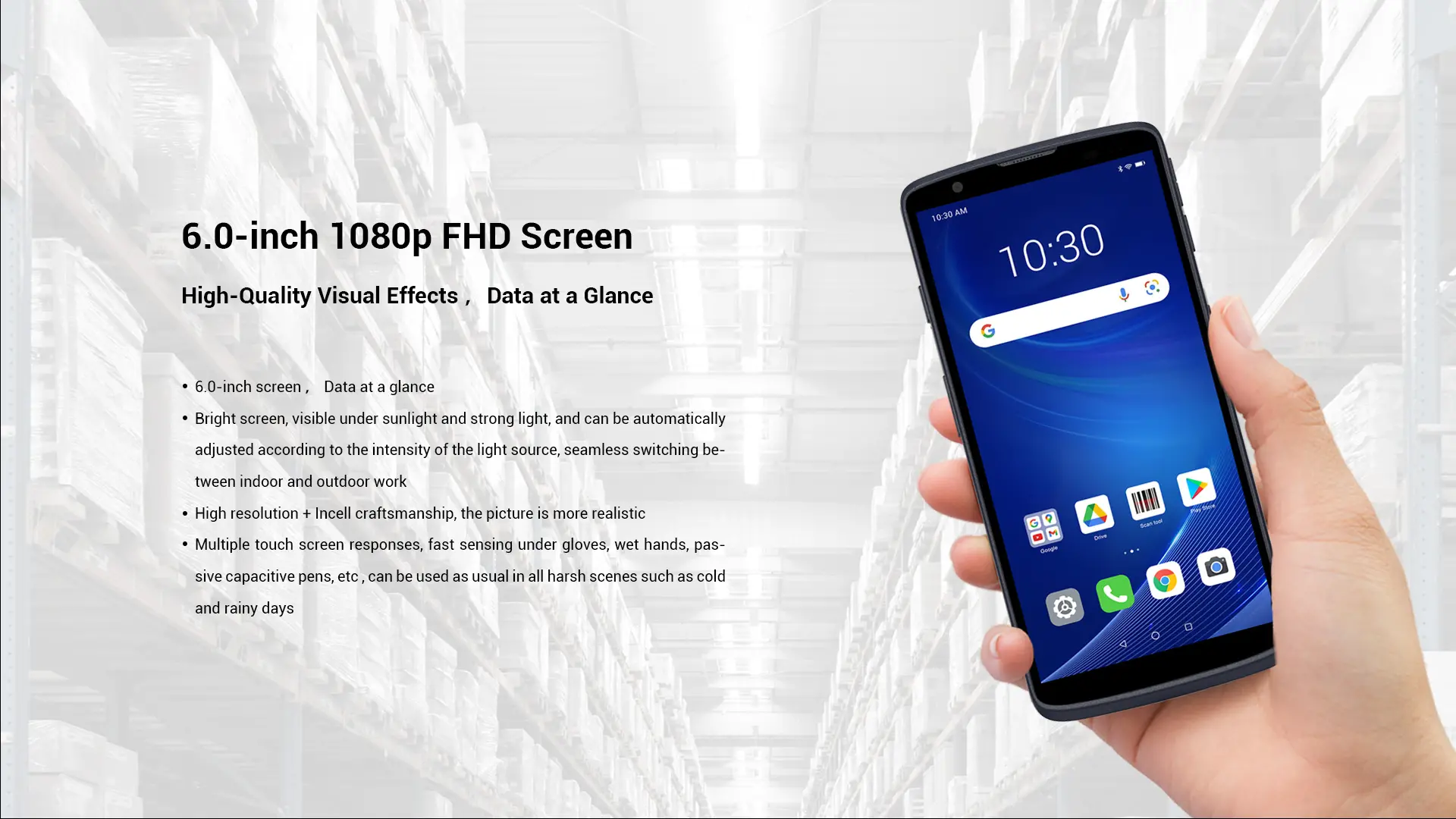

6 in. FHD (1080 x 2160); capacitive stylus, support glove mode, Corning Gorilla Glass
Touch Panel
Capacitive touch, supporting wet hand mode and glove mode
Power

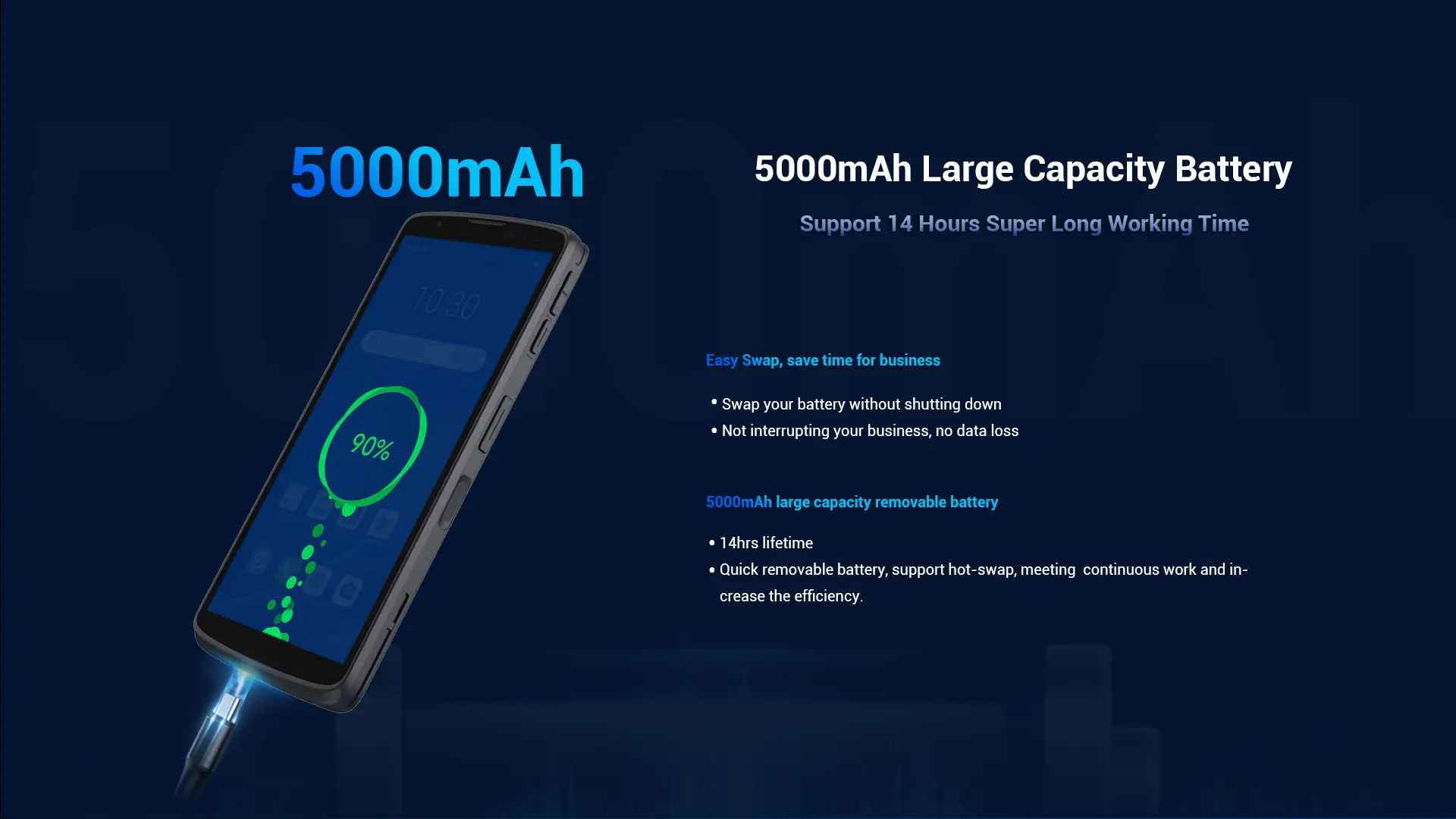

Detachable 5000mAh Li-ion rechargeable battery (including standby battery)
Expansion Slot
Micro SD card, up to 128GB SDHC compatible
Interface / Communication
Waterproof Type C USB interface, support Type C headset; support USB3.0 HighSpeed; support OTG (nonsupport display); support fast charge
SIM Interface
Nano SIM*1+eSIM*1 (The main card supports 5G)
Notifications
Voice, vibrator, LED indicator
Finger Print
Support, only unlocking function available
Keypad
Volume +, volume -, power button, scan button×2, PTT button
Voice and Audio
Built-in single speaker (2W), built-in dual microphones (with noise reduction function)
Performance Characteristics
CPU
Qualcomm Octa-core 2.4 GHz
Operating System
Android 13, GMS certified
Memory
4GB RAM / 64 GB UFS memory
8GB RAM / 128 GB UFS memory (Optional)
Operating Temp.
-4 °F to 122 °F / -20 °C to +50 °C
Storage Temp.
Battery included: -40 °F to 140 °F / -40 °C to + 60 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
4.9 ft. / 1.5 m drops to concrete at room temperature
Tumble Spec.
1000 1.6 ft. / 0.5 m tumbles
Sealing
Dual IP68 (with/without battery cover)
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Gravity sensor, light sensor, Proximity sensor, electronic compass, gyroscope, barometer (optional)
Scanning
SR 2D Barcode scanner
Camera support barcode scanning

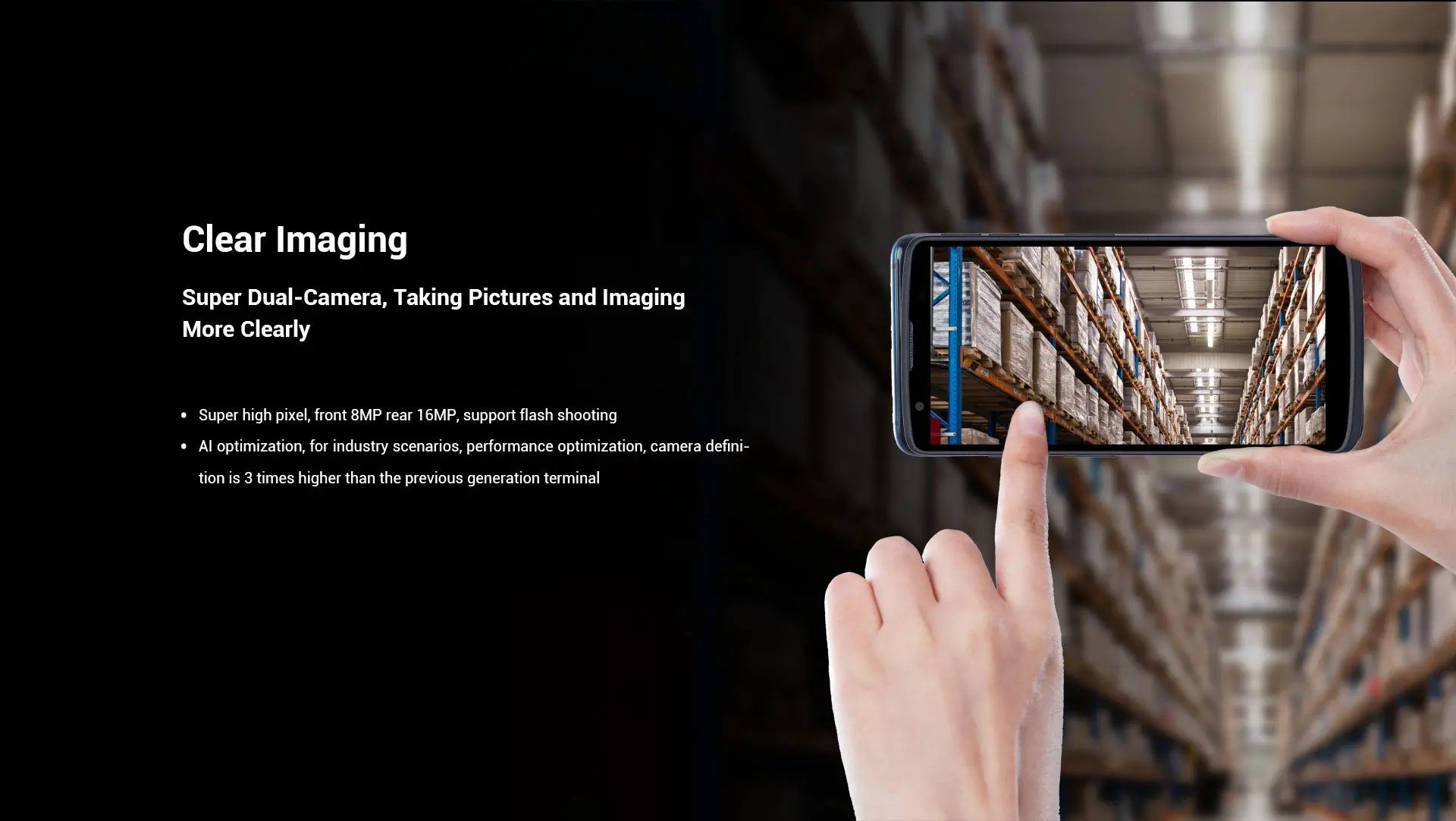

Camera
Front: 8 MP, fixed focus
Rear: 16 MP autofocus, PDAF, flash LED with flashlight mode
NFC
Refer to the specifications for detailed parameters
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Frequency Range
Dependent on the country (region), 2.4GHz: 2.412GHz-2.472 GHz; 5GHz: 5.170GHz-5.825GHz
WWAN Radio
Refer to the specifications for detailed parameters
GPS
Three-in-one of GPS, Beidou and GLONASS, compatible with AGPS
GPS: L1 (1.575GHz), L5 (1.176GHz); Beidou: B1 (1.561GHz); GLONASS: L1 (1.602GHZ)
Standard
Portable adapter×1, Type C data cable×1
Additional
Single device charging cradle, 5-slot device charging cradle, 4-slot battery charger, Pistol grip, Protective case, Tempered protect film
THIRD PARTY APPLICATION SUPPORT
System Software
Android 13
System Programming Environment
Android Studio
*
Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
