Seuic Products / Tablets / AUTOID Pad Air-(Win)

AUTOID Pad Air-(Win) Rugged Industrial Tablet

  • CPU: Intel Core M3-8100Y
  • Display: 10.1-inch, FHD+ (1920 x 1200)
  • Memory (RAM/ROM): 8 GB/128 GB (SSD)
  • Power: 5070 mAh/7.7 V
  • Weight: 24.3oz/690g with standard battery
  • Drop Specifications: 3.9 ft. /1.2 m drops to concrete
  • Sealing: IP65

Consumer appearance and industrial protection are combined to create the ideal product. Displays colors with precision and delicacy on the large 10.1-inch screen with 1080P resolution. It is excellent that Windows enterprise OS fulfils the needs of customers. Data transmission is fast and stable with 2X2 MIMO dual-band WIFI. Optional high- and low-performance Intel processors are available with surging performance and smooth operation.

Features

● Windows 10/11 powered by Intel Core, 2 x 2 MU-MIMO WiFi, 10.1-inch FHD+ display.

● IP65, 3.9 ft./1.2 m drops to concrete and MIL-STD-810G certification.

● Multiple accessories: Expansion Back+Rotating Hand Strap (Android SKUs only), Single Device Charging Cradle, Bracket, Connecting Rod, Docking.

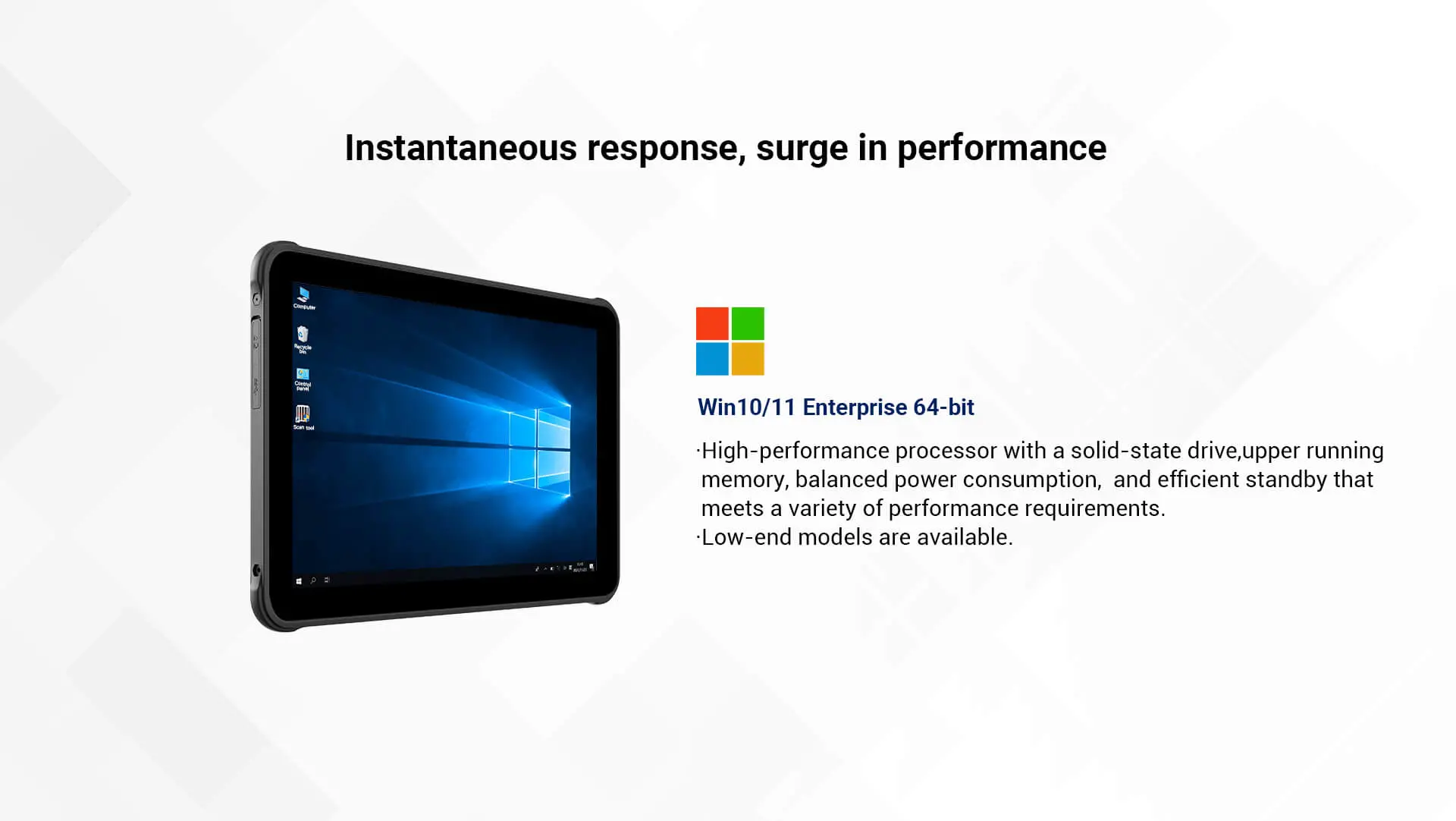

AUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAutoid Pad Air (Win) Industrial Tablet Performance Showcase
AUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial Tablet

Specifications
Physical Characteristics
Dimensions
10.1 in. L x 6.8 in. W x 0.4(0.5) in. H
258 mm L x 173 mm W x 10.8(12) mm H
Weight
24.3oz/690g with standard battery
Display
10.1 in. full angle liquid crystal display , FHD (1920 x 1200)
Touch Panel
Capacitive 10 touch, water touch support
Power
Bottom contact interface: DC IN: Maximum Input Power 27W,
Non-removable 7.7 V lithium rechargeable battery
Typical value: 5070mAh
Rated 4920mAh
USB TYPE-C interface for PD fast charging
Expansion Slot
Micro SD Card, SDXC support
Interface / Communication
TYPE-C interface, support host charging, support USB3.0(down-compatible USB2.0), support displayport, headphones, etc.
bottom interface: USB2.0, 5V output, DC input, IO
Light
Red for charging (breathing for low power) and green for fully charged
Blue (reserved) and red for scan indication
Buttons
3 buttons (power, volume +, -)
Voice and Audio
Built-in stereo speaker, 4Ω 2W * 2, built-in dual microphones, support for TYPEC digital headsets
Performance Characteristics
CPU
Intel core M3-8100Y, 2-Core 4-thread, 1.1 GHz, maximum core frequency 3.4 GHz/Intel UHD 615, basic frequency 300 MHz, maximum dynamic frequency 900 MHz
Operating System
Windows 10 IoT enterprise 64 bit(Upgradeable to Windows 11 IoT)
Memory
8 GB (LPDDR3 1867 MHz) / 128 GB (solid state Drive,256G optional)
User Environment
Operating Temp.
14 °F to 122 °F/-10 °C to +50 °C
Storage Temp.
Battery included: -4 °F to 140 °F/-20 °C to +60 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
3.9 ft./1.2 m drops to concrete at room temperature
Sealing
IP65
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Accelerometer, ambient light sensors
Data Capture
Scanning
2D barcode scanner
Camera
Front: 2 MP fixed focus
Rear: 8 MP autofocus, support flashlight
Wireless Connectivity
WLAN Radio
IEEE 802.11 a/b/g/n/ac/ (2.4G/5G dual-band WIFI) 2X2 MIMO BT
WLAN-Data Rates
Refer to the specifications for detailed parameters
WLAN-Working Channel
Ch1 ~ CH13, CH34 ~ CH64, CH100 ~ 144, CH149 ~ CH165
Accessories
Standard
PD adapter × 1, Dual Type-C data cable × 1, Hand Strap × 1
Additional
Multifunctional cradle, silicone protective cover, steel film, shoulder strap, bracket for fixed mounting, docking and connecting rod
THIRD PARTY APPLICATION SUPPORT
System Software
Windows 10/11
System Programming Environment
Visual Studio
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
Solutions
Download
AUTOID Pad Air-(Win) Brochure
7.8MB
Download
AUTOID Pad Air-(Win) Specification V1.2
452.5KB
