Dimensions
8.0 in. L × 2.8 in . W × 1.06 in. H
203 mm L ×72 mm W ×27 mm H
(width 70mm side keys excluded)
Weight

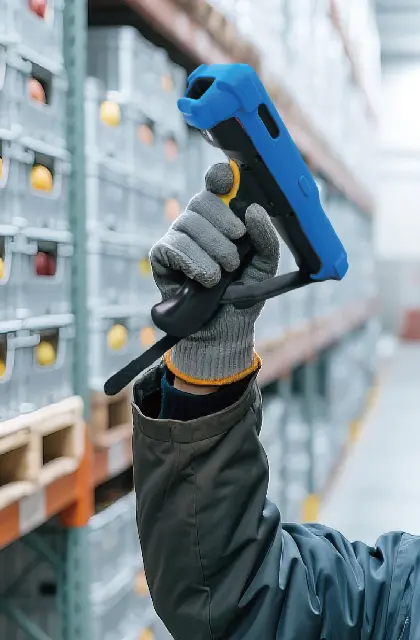

17.5 oz. /495 g (battery and pistol grip included)
14.8 oz. /420 g (battery included, without pistol grip)
Display
4.0 in. (480 x 800 )(WVGA)
Touch Panel

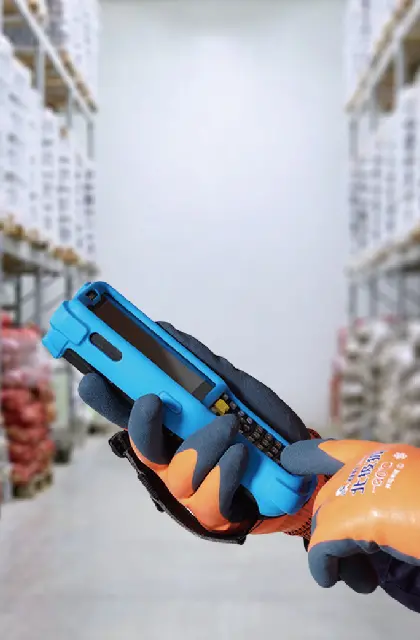

Industrial grade low temperature resistant, Capacitive, touchable, dual mode touch-with or without a thick glove / with or without wet hand
Power
Detachable 3.7V rechargeable Li-ion battery
Standard battery: Average capacity 6200mAh
Built in li-ion backup battery
Intelligent identification of PC and special charger; support Charging Cradle
Expansion Slot
Micro SD Card, 256GB SDHC compatible
Interface / Communication
Support OTG

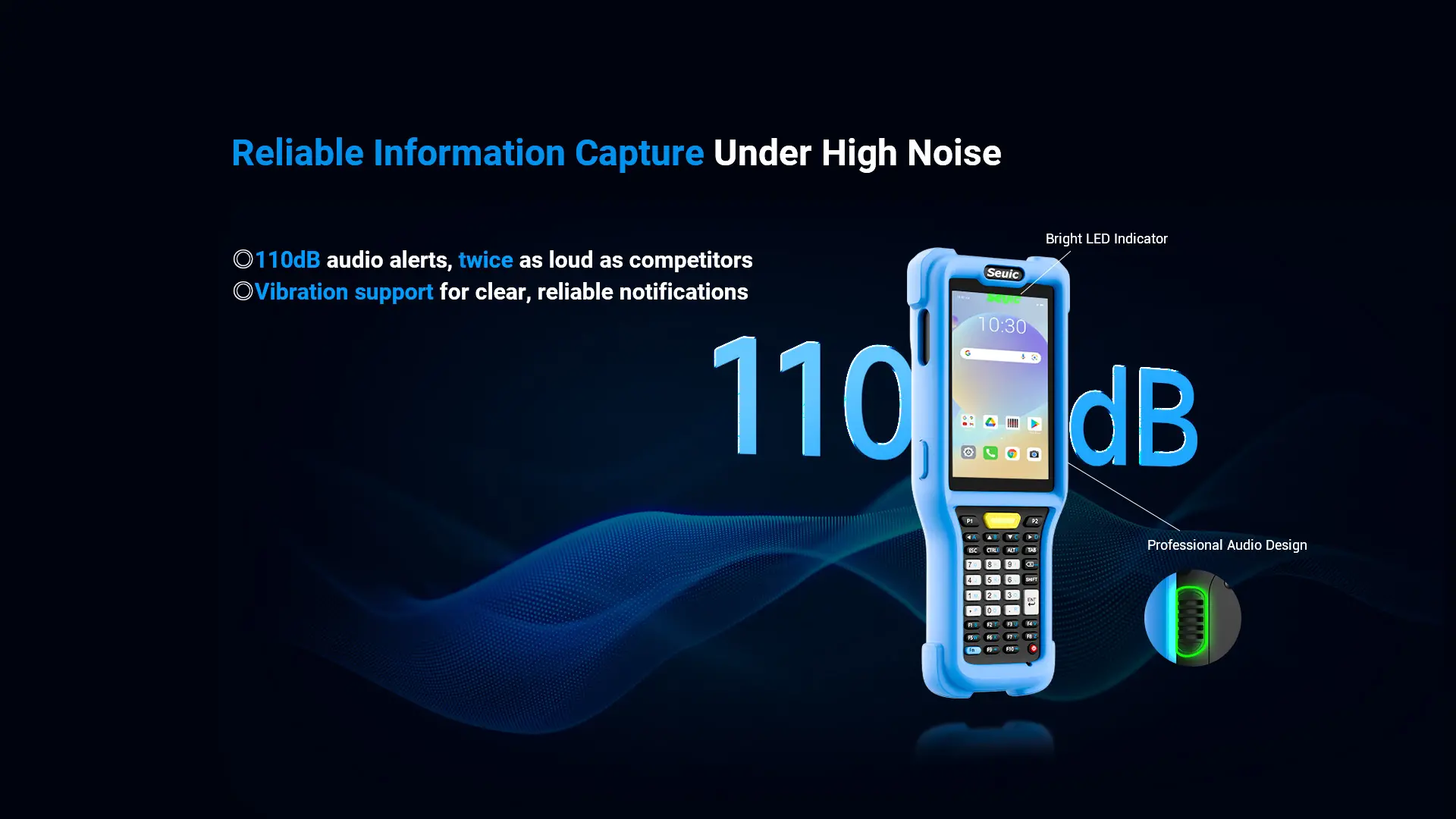

Notifications
Sound, Vibrator, LED indicator
Keypad
38 Keys Key + 2 scan keys on the left and right sides, LED (buttons with backlight)
Voice and Audio
Built-in loudspeaker, built-in dual microphone
Performance Characteristics
CPU
Qualcomm Octa core 2.0 GHz
Operating System
Android 14.0
Memory
4GB RAM / 64GB Flash memory
Operating Temp.
-13 °F to 122 °F / -25℃ to + 50℃
Storage Temp.
Battery included: - 40 °F to 158 °F / -40 °C to + 70 °C
Humidity
5% to 95% RH non-condensing

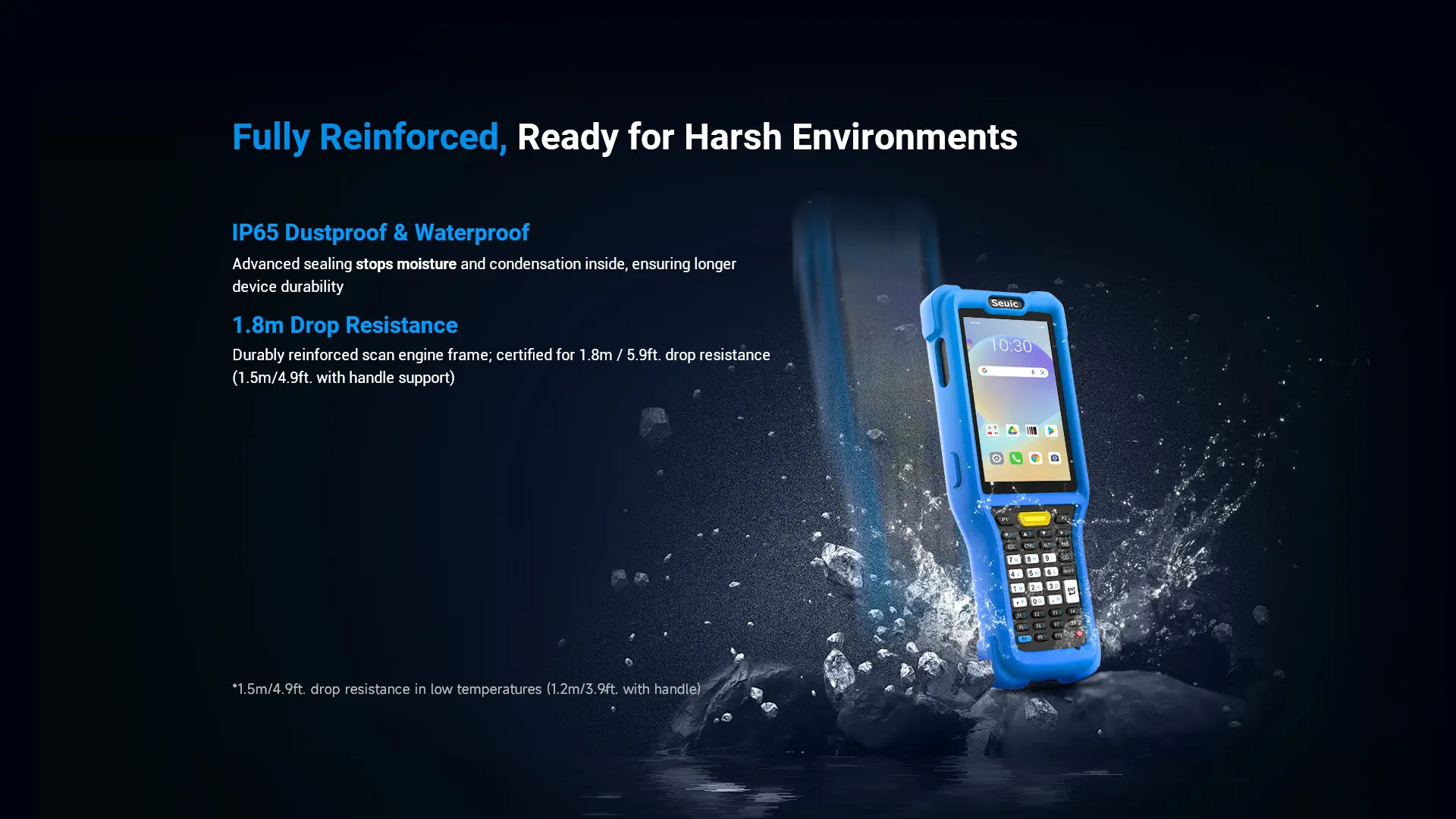

Drop Spec.
Multiple 5.9 ft. / 1.8m drops to marble across the operating temperature range
Tumble Spec.
1,000 1.64 ft. / 0.5 m tumbles (2,000 impacts)
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Standard: Optical sensor, Proximity sensor, Acceleration sensor, electronic compass and gyroscope
Scanning
Standard range 2D Scan engine
Advanced far range 2D Scan engine
Camera scanning
Camera
Rear: 13 MP autofocus
Resolution: 4208*3120 (taking photo), 1080P@30fps (making video)
Support flashlight, can be used for lighting
NFC
Refer to the specifications for detailed parameters

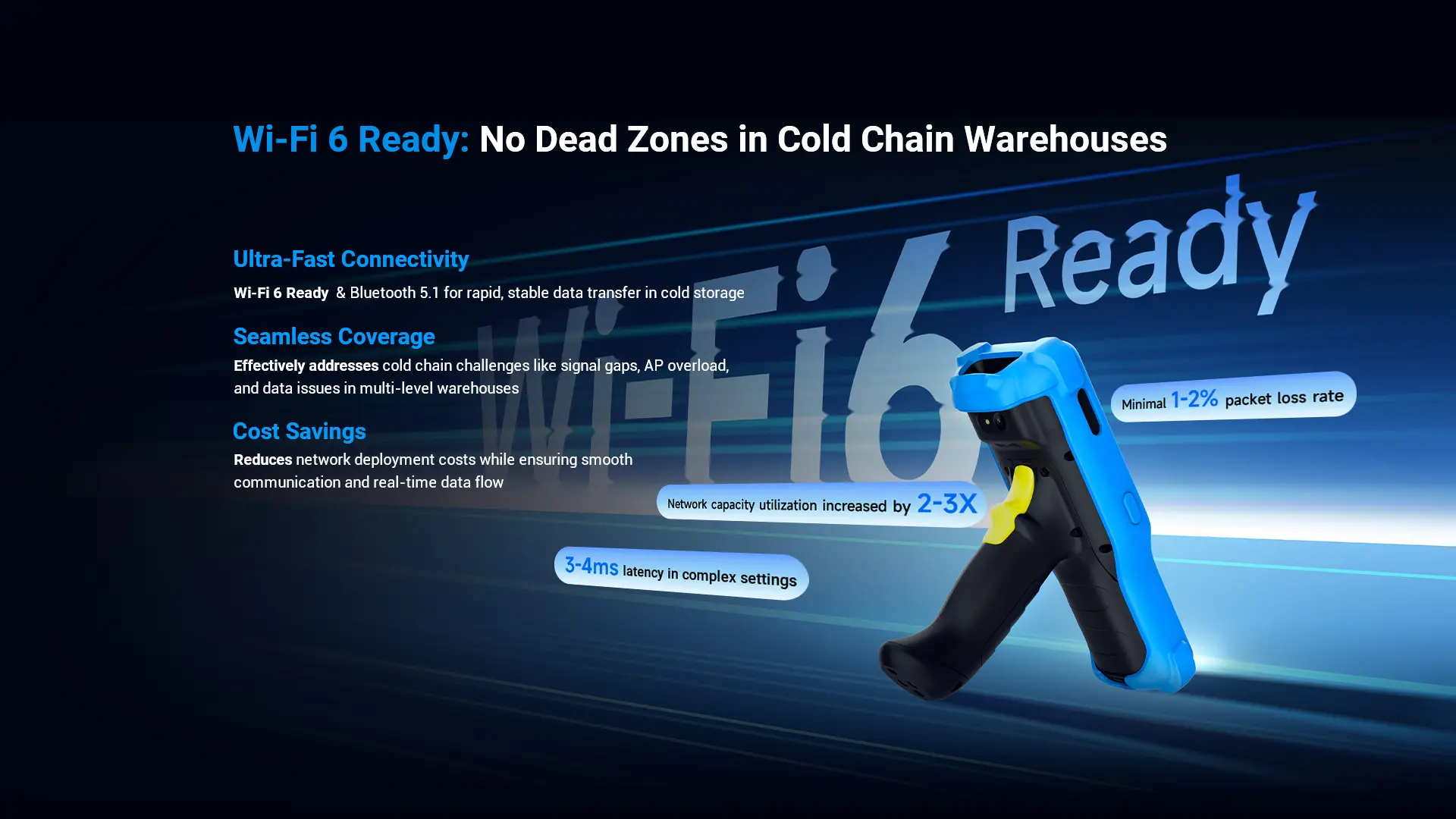

WLAN Radio
IEEE 802.11a / b / g / n / ac (2.4G/5G dual-frequency WIFI6-Ready)
WLAN-Frequency Range
Refer to the specifications for detailed parameters
Standard
Power Adapter, USB Cable with end flap clip, Hand Belt, battery
Additional
Four Slot Battery Charger, Single Slot Device Charger include battery, Single Slot Charging Dock include battery (support ehernet), Touch pen, Multifunctional bag, Vehicle charger, OTG data cable, Hand Tether, Five-slot Device Charger, Five-slot Device Charger(support ehernet), Pistol Grip, Tempered glass screen protector
THIRD PARTY APPLICATION SUPPORT
System Software
Android 14.0
System Programming Environment
Android Studio
*
Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
