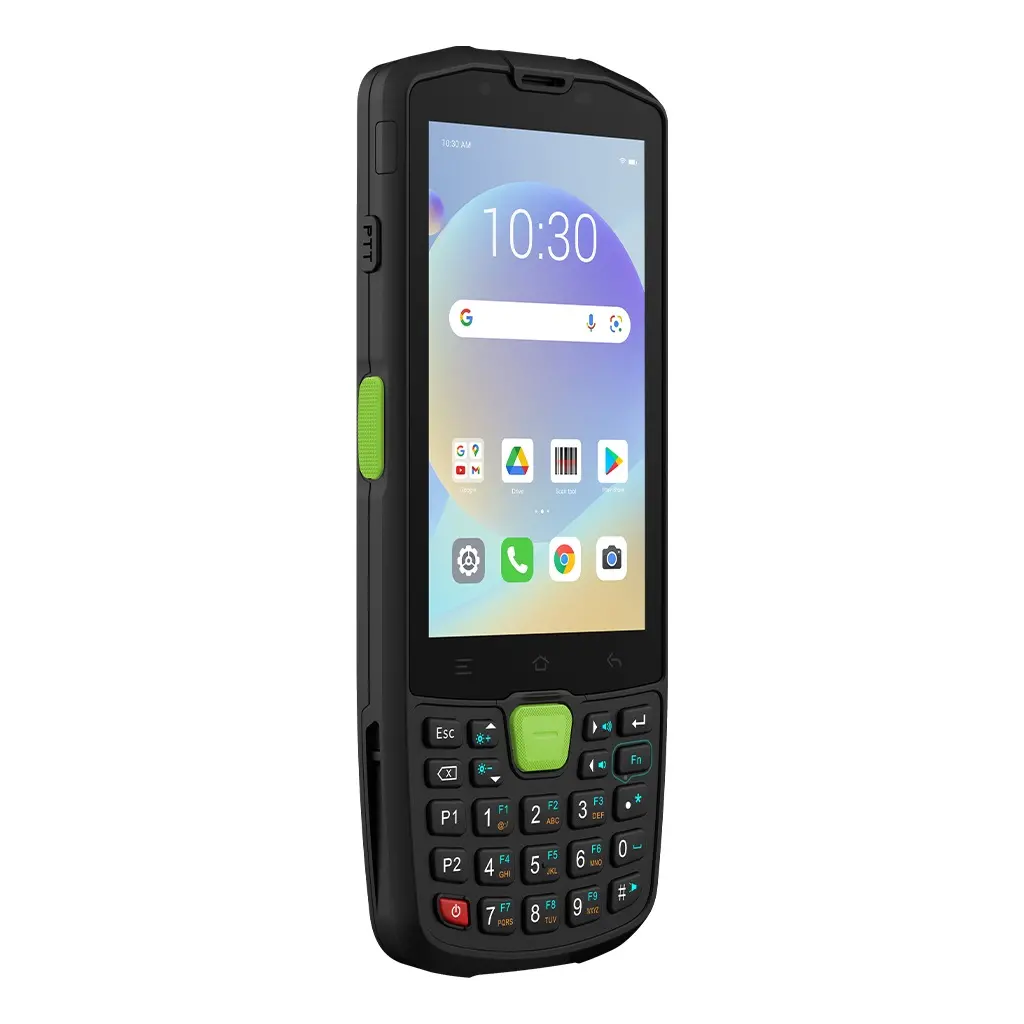

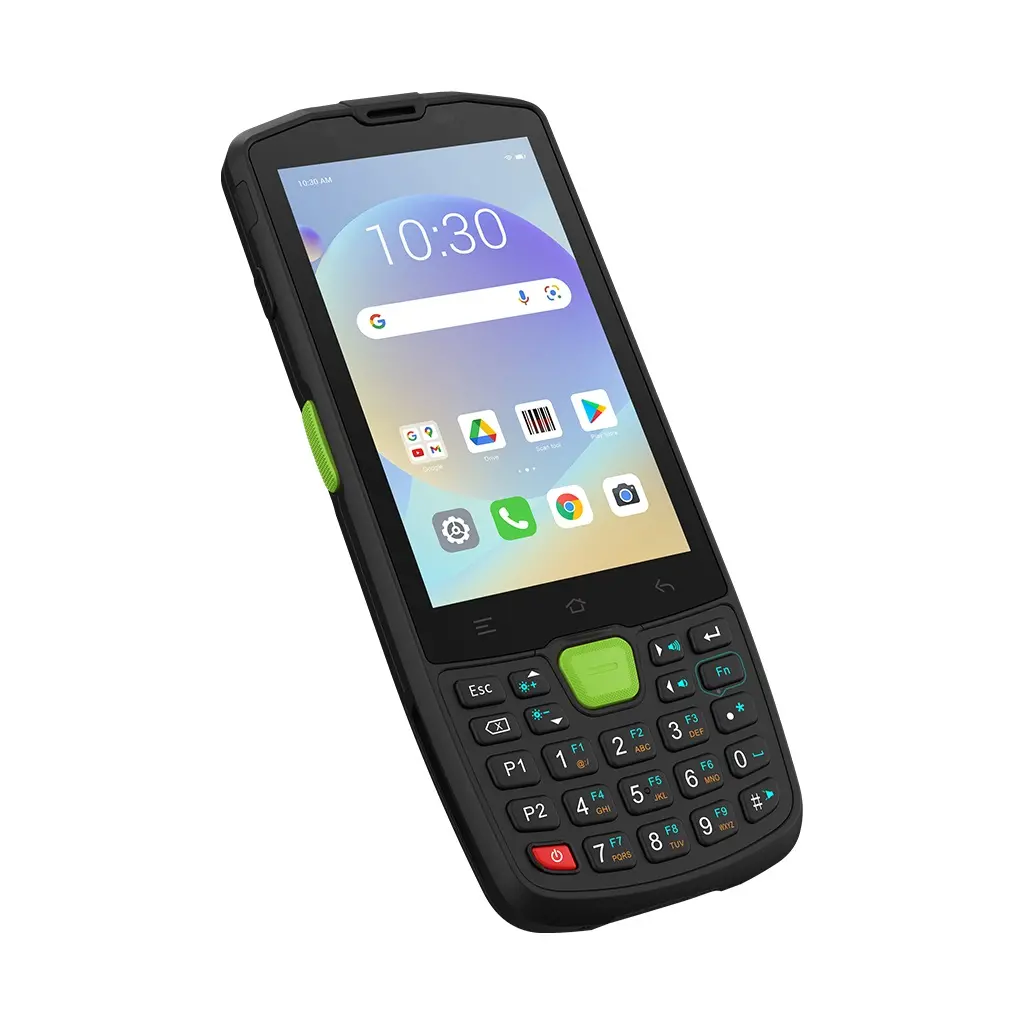

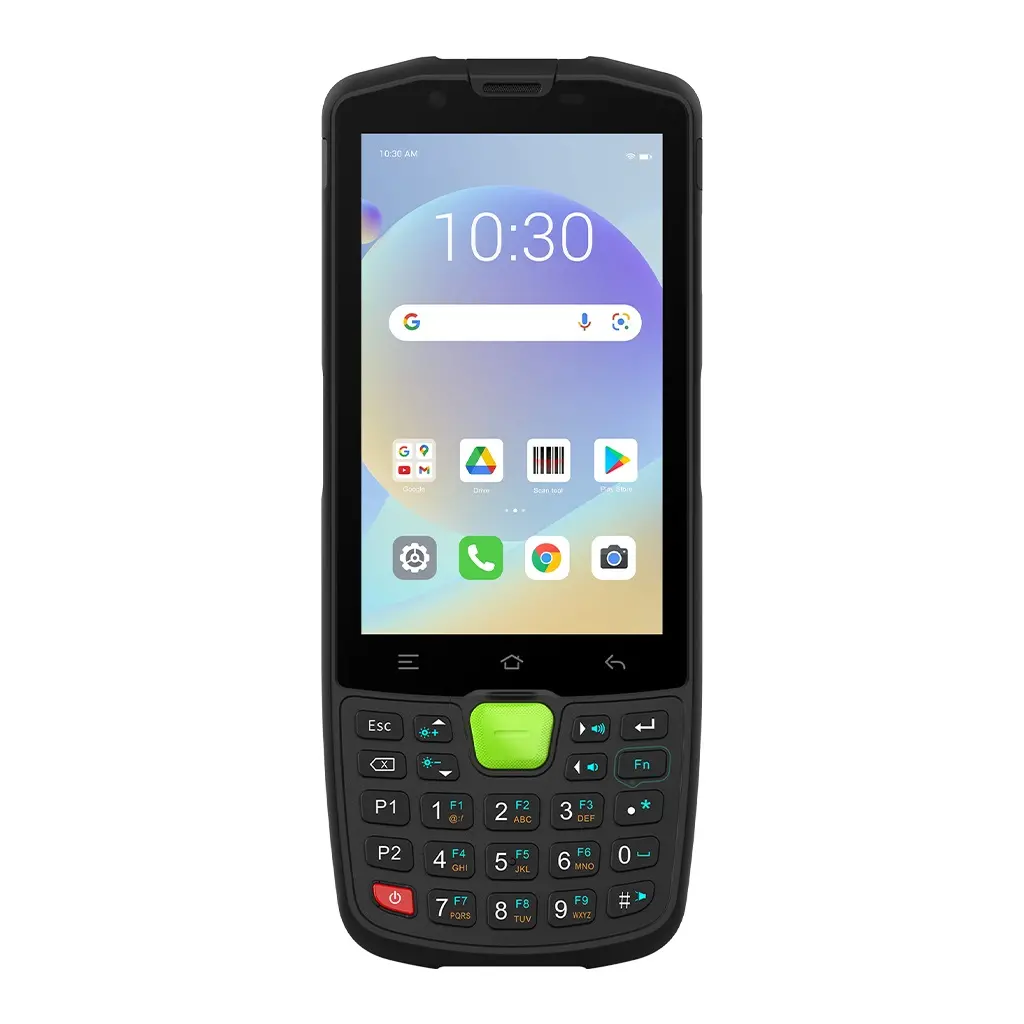

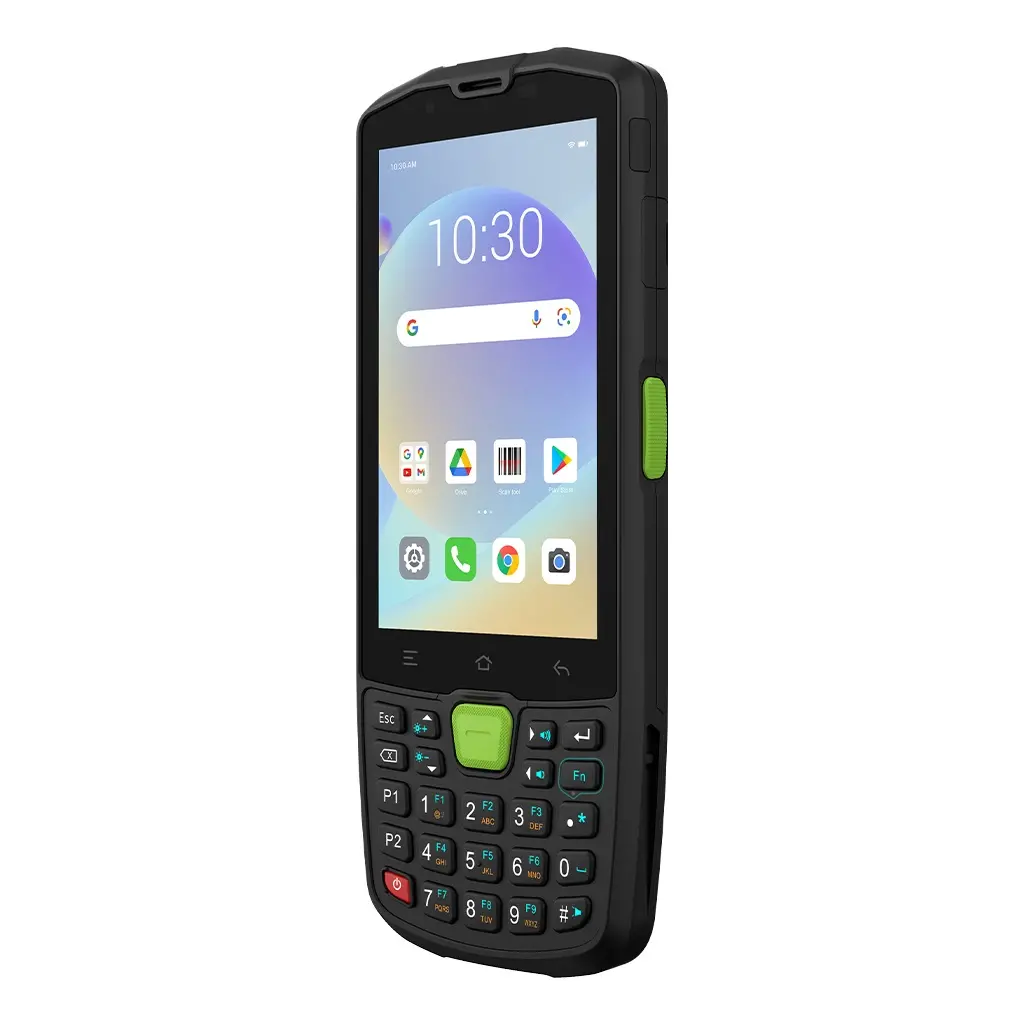

AUTOID Q9 Industrial-grade Handheld Terminal

  • CPU: Octa-core, up to 2.0 GHz
  • Display: 4-inch, WVGA resolution
  • Memory (RAM/ROM): 4 GB/64 GB
  • Power: 5200 mAh
  • Weight: 8.8 oz./250 g (with battery)
  • Drop Specifications: 5.8 ft./1.8 m drops to concrete
  • Sealing: IP67

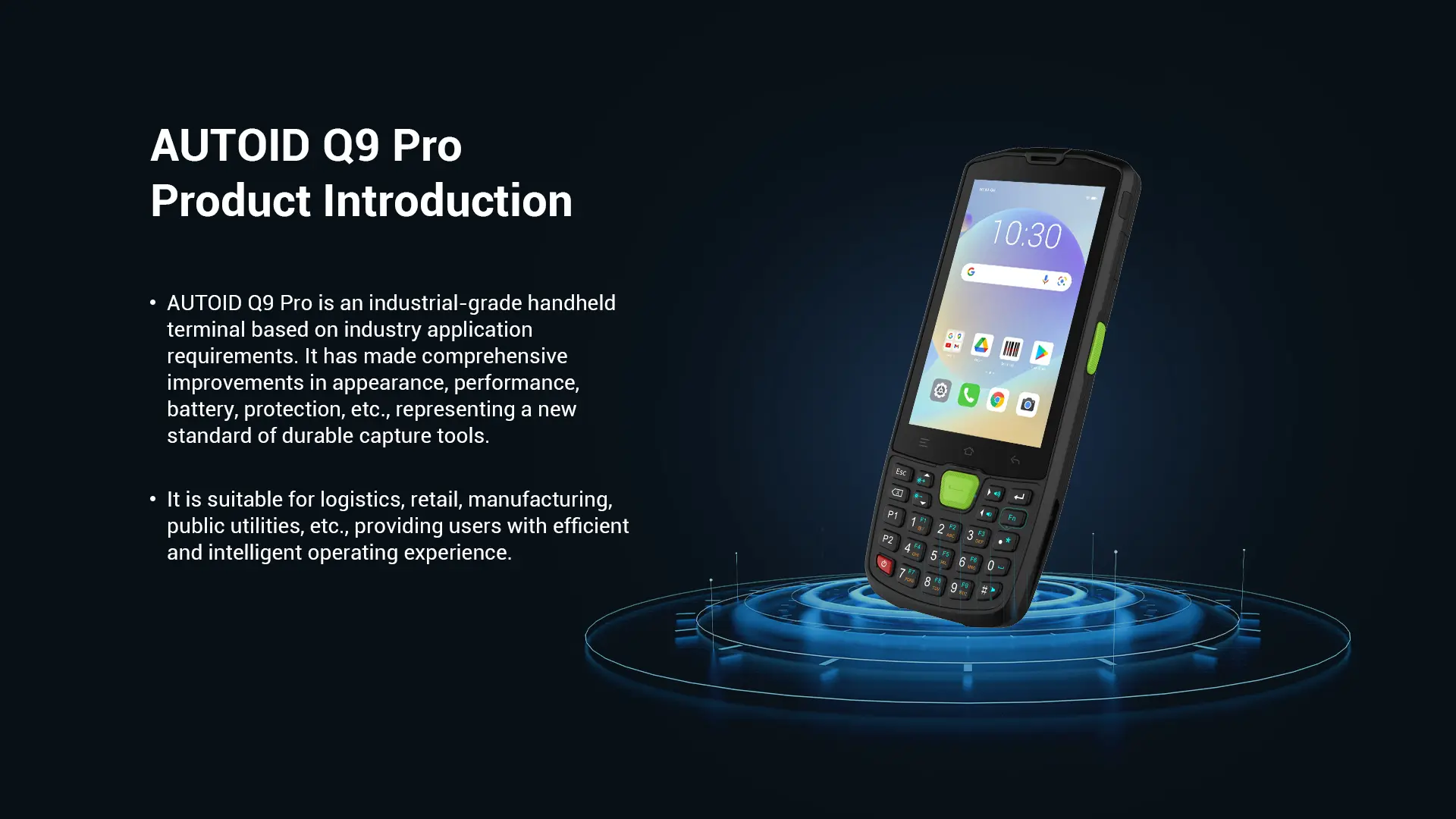

Designed to meet the high demands of industrial applications, AUTOID Q9 is an industrial-grade handheld terminal. New features have been added to enhance appearance, performance, battery life, protection, and other aspects, bringing this tool up to the highest level of durability. Users benefit from efficient and intelligent operations in logistics, retail, manufacturing, public utilities, etc.

Features

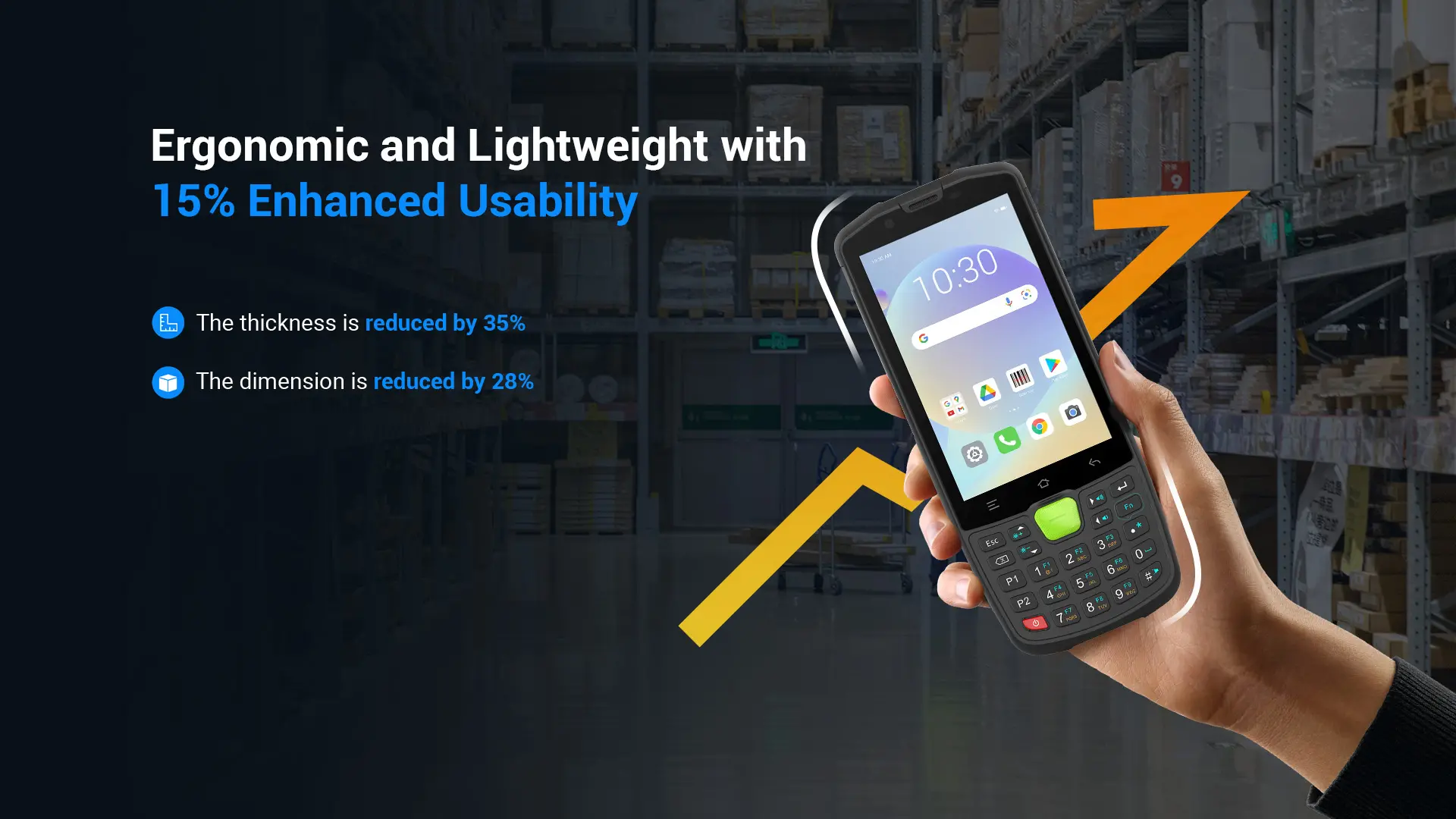

● An ergonomic design makes it slim, lightweight and easy to hold.

● IP67, 6 ft./1.8 m drops to concrete.

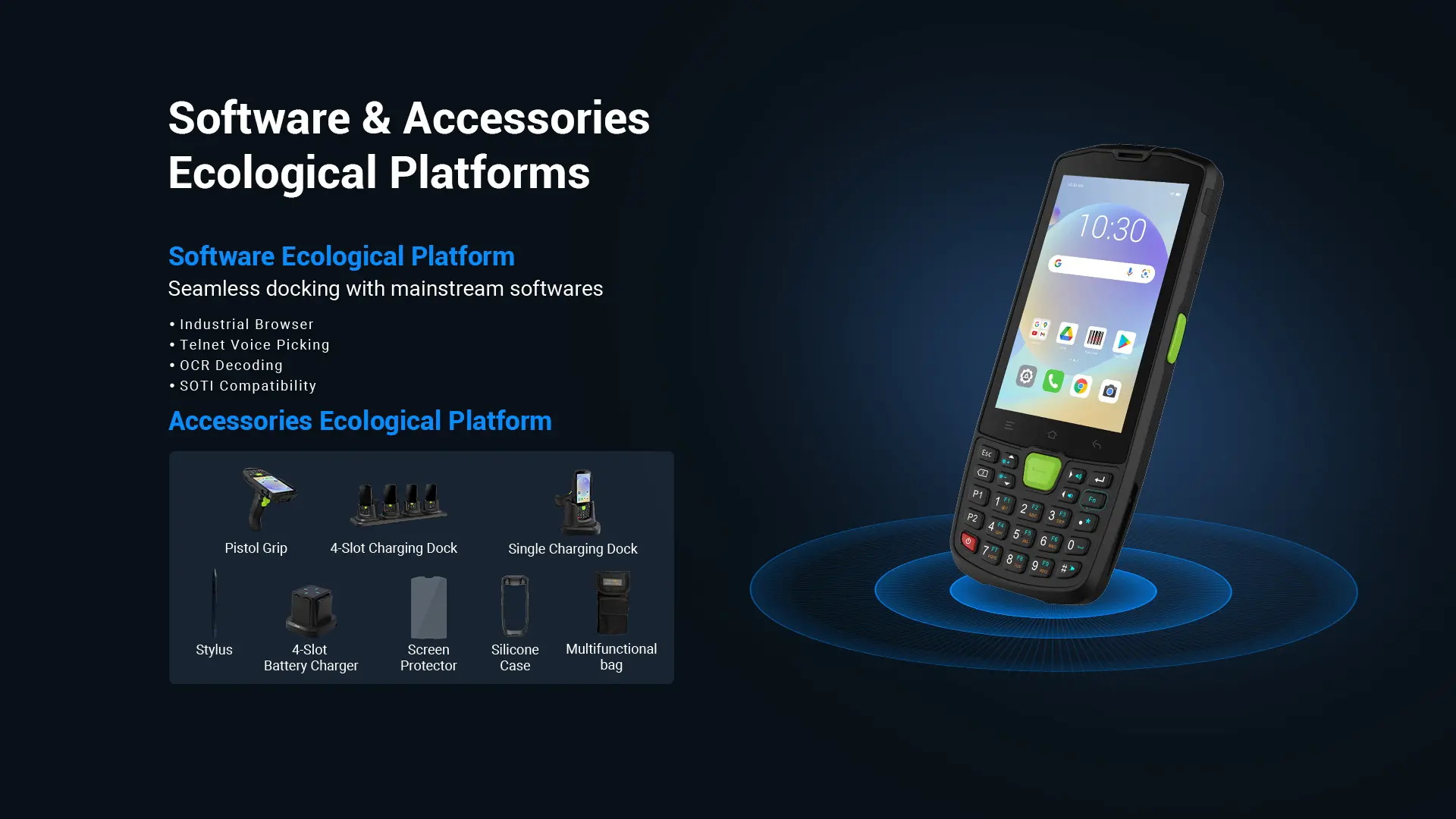

● Multiple accessories: Pistol Grip, Multifunctional Bag, Single Charging Dock, 4-slot Charging Dock, 4-slot Battery Charger.


Specifications
Physical Characteristics
Dimensions
6.3 in. L x 2.6 in. W x 0.6 in. H
160 mm L x 66.3 mm W x 16.2 mm H
Weight
8.8 oz./250 g (include battery)
Display
4 in. IPS screen (800 x 480)
Touch Panel
Capacitive touch, supporting wet hand mode and thick glove mode
Power

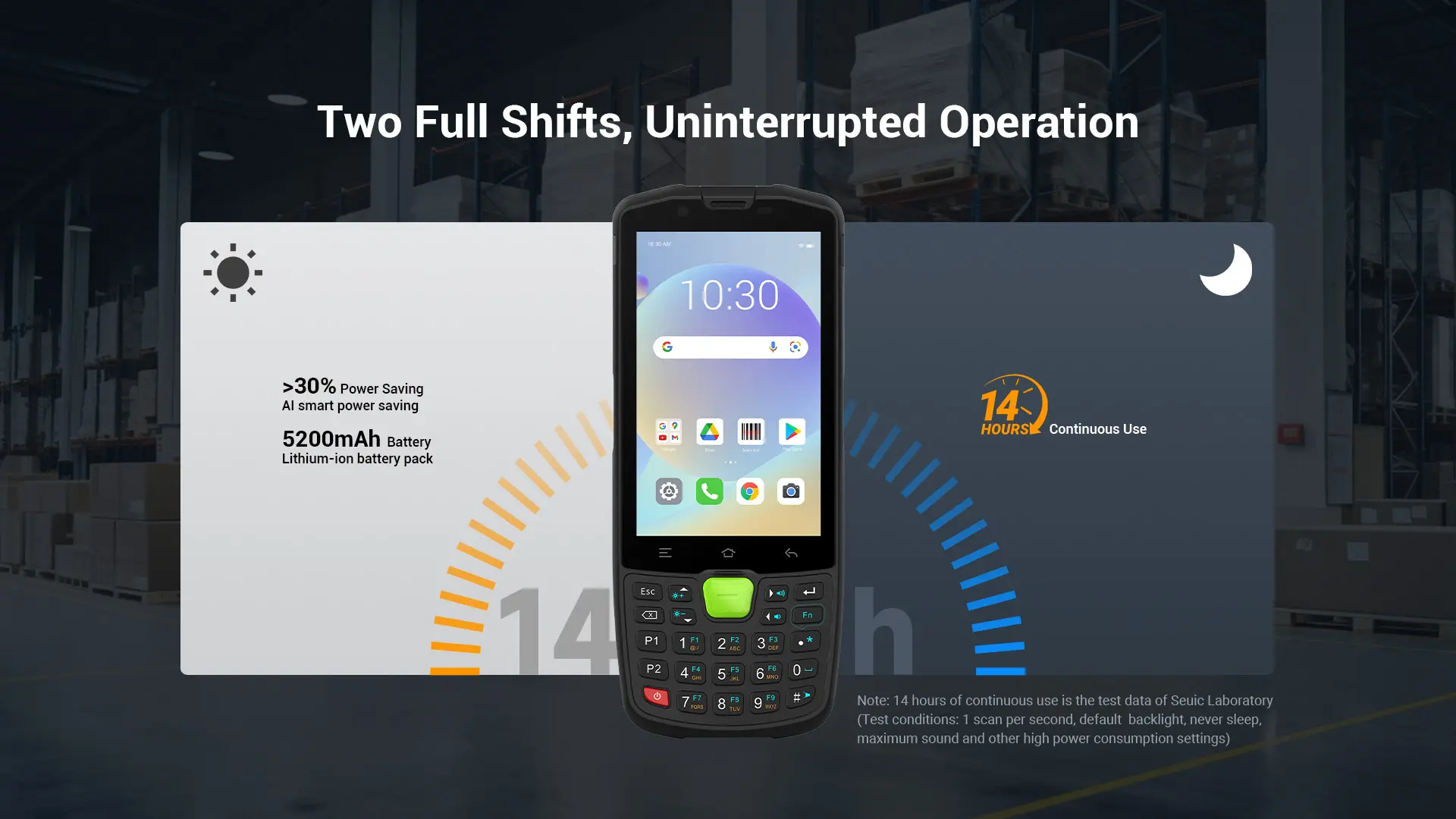

Detachable 5200mAh Li-ion rechargeable battery 60mAh Li-ion spare battery
Expansion Slot
Micro SD Card, compatible up to 32GB
Interface / Communication
Support Type-C, support OTG
Notifications
Sound, vibrator, LED indicator
Keypad
27 keys: Front key*24, Side scan key*2, PTT key*1
Voice and Audio

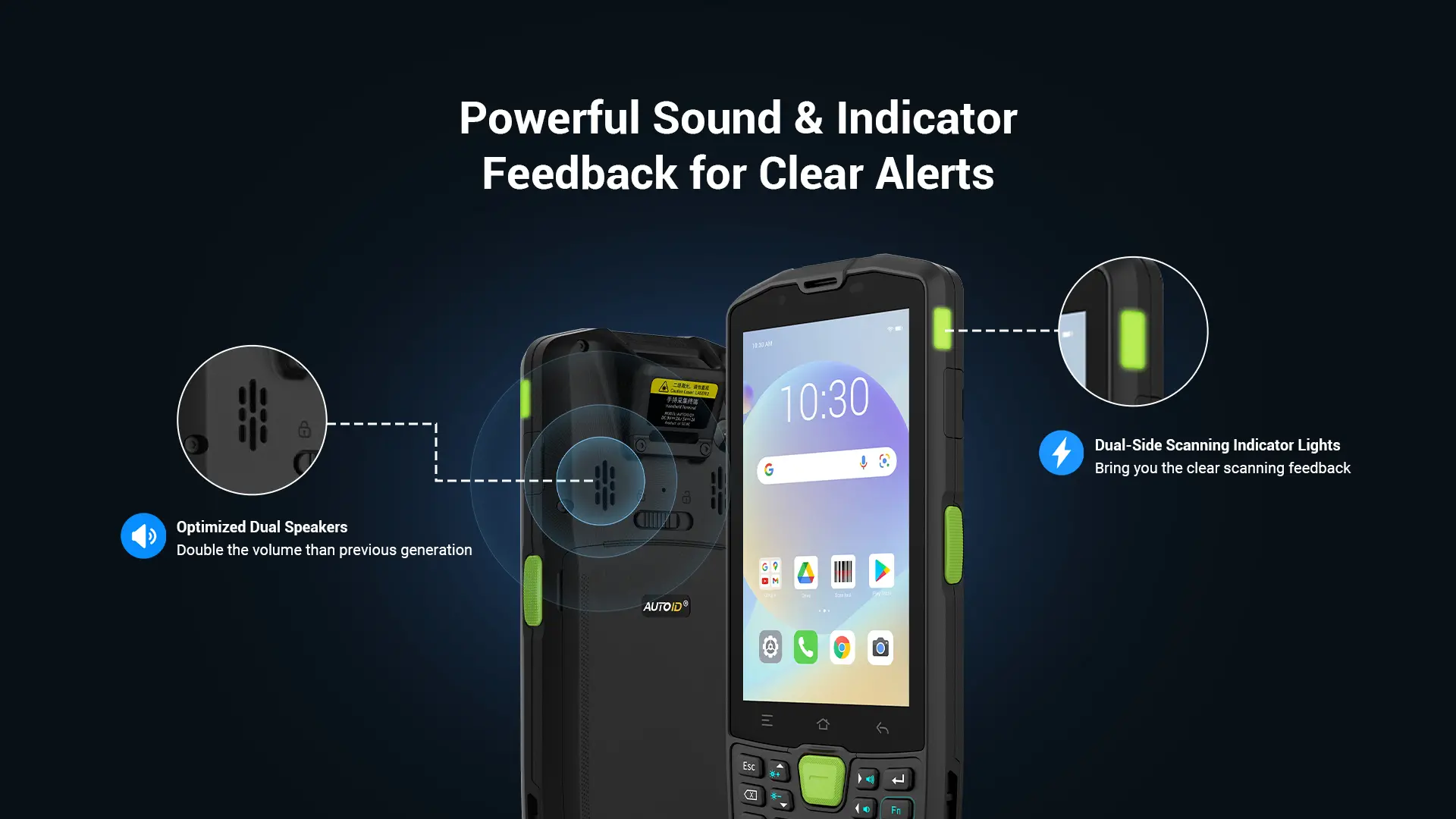

Built-in dual loudspeaker, built-in dual microphone, Type-C support earphone
Performance Characteristics
CPU
MTK Octa-core 2.0GHz
Operating System
Android 10, GMS Certified
Memory
4GB RAM/64 GB ROM
3GB RAM/32 GB ROM (Optional)
User Environment
Operating Temp.
-4 °F to 122 °F / -20 °C to +50 °C
Storage Temp.
Battery included: -40 °F to 140 °F/-40 °C to +60 °C
Battery excluded: -40 °F to 158 °F/-40 °C to +70 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
Multiple 5.8 ft./1.8m drops to marble across the operating temperature range
Tumble Spec.
1000 rounds of tumble from 1.6 ft./0.5 m, equals to 2000 impacts

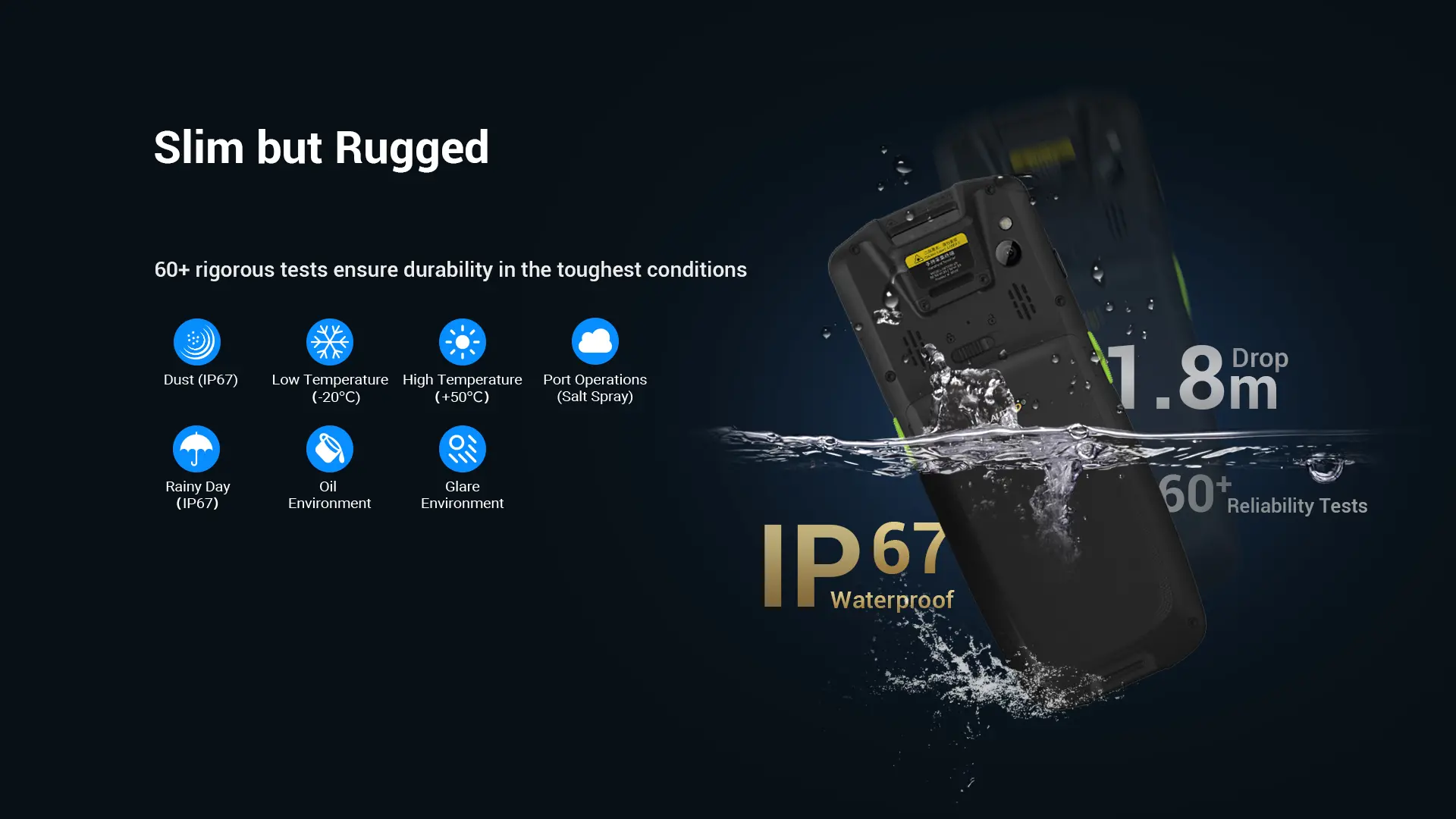

Sealing
IP67
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Optical sensor, proximity sensor, gravity sensor, gyroscope, E-compass
Data Capture
Scanning
Seuic 2D image Scan engine
Camera scanning
Camera
Front: 5 MP Fixed focus, 2592*1944 (taking photo)
Rear: 13 MP Autofocus, Support flashlight, can be used for lighting, 4224*3136 (taking photo), 1080P@30fps (making video)
NFC
Refer to the specifications for detailed parameters
Wireless Connectivity
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Data Rates
Refer to the specifications for detailed parameters
WLAN-Working Channel
CH1~CH13, CH34~CH165
WWAN Radio
Refer to the specifications for detailed parameters
GPS
GPS+GLONASS+ Beidou, Support AGPS
GPS: L1 (1.575GHz), Beidou: B1 (1.561GHz); GLONASS: L1 (1.602GHZ)
Accessories
Standard
Power Adapter, USB Cable, Battery, Hand Strap
Additional
4-slot battery charger, single device charging cradle with one spare battery charging slot, 4-slot charging cradle, pistol grip, multifunctional bag, touch pen, tempered glass screen protector, device protect cover
THIRD PARTY APPLICATION SUPPORT
System Software
Android 10
System Programming Environment
Eclipse, Android Studio
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
