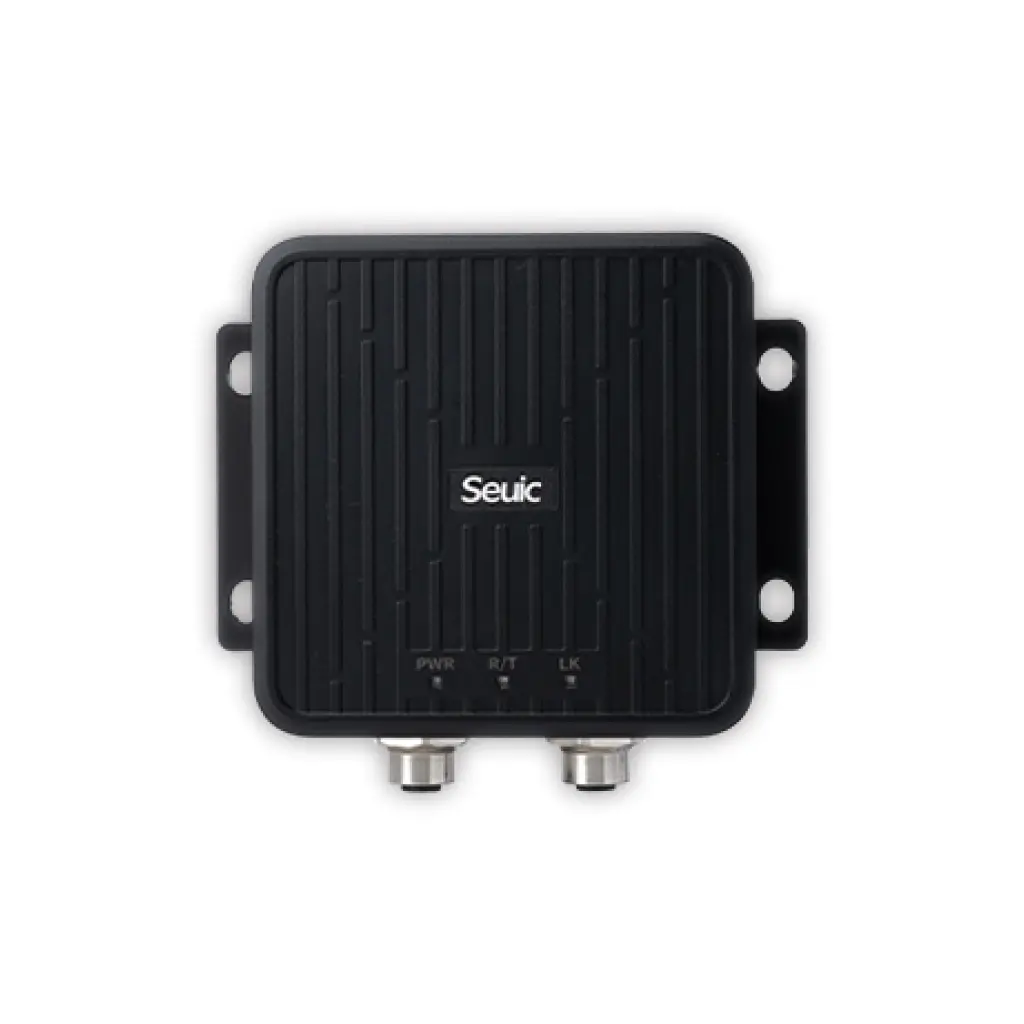

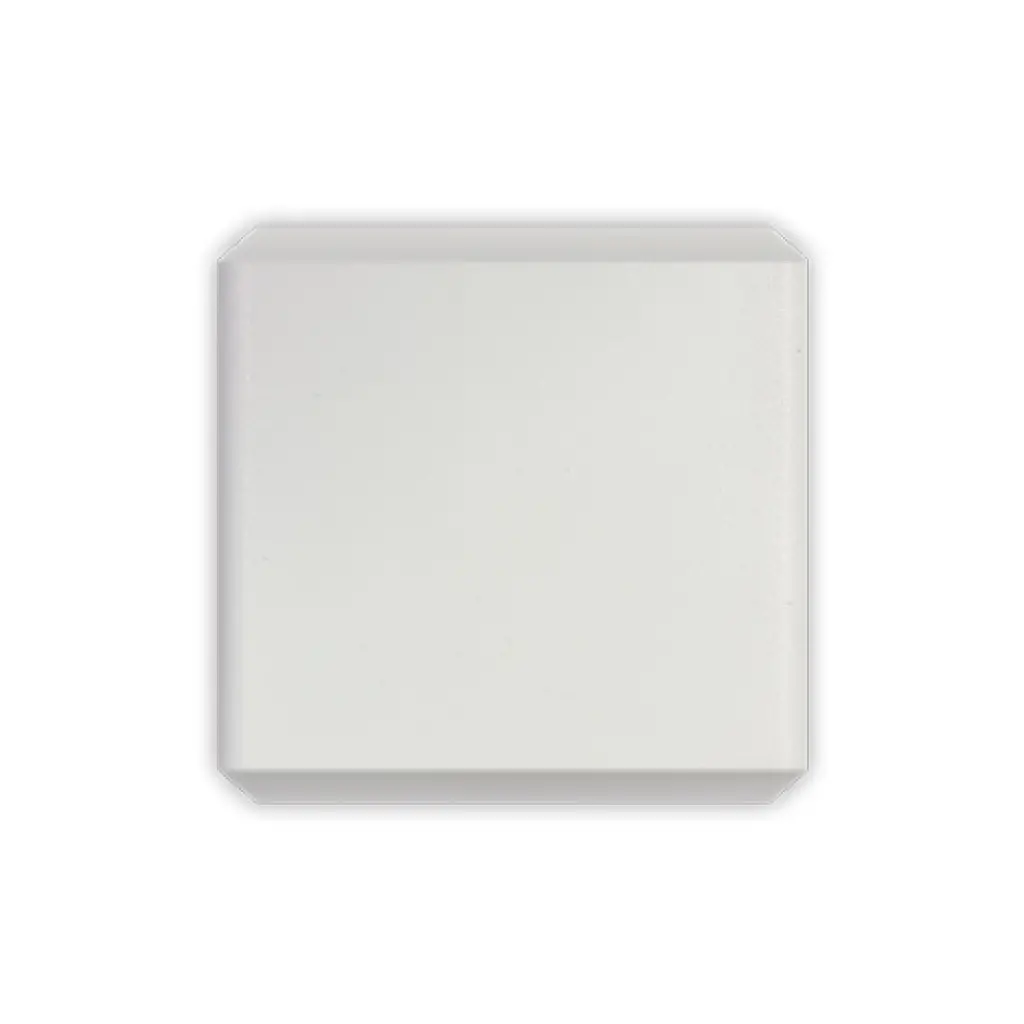

AUTOID UF2-C Fixed RFID Reader
An embedded QM100 engine is included in the UF2 UHF reader developed by SEUIC. TCP/IP protocol interface is standard, and CAN, RS232, RS485 and other protocols are optional. Combined with proprietary and efficient signal processing algorithms, it achieves a high reading rate and fast tag reading, making it suitable for various applications, including logistics, production control, etc.
Features
Specifications
Solutions
Download
Contact Us
Features
● Mini size (95 mm L x 95 mm W x 36 mm H), low power consumption (<12W), IP67.
● Adopted with CAN, TCP/IP, RS 232 communication port.
● QM100 module, 3 dBi Circular Polarization Antenna.
Specifications
Physical and Environment Parameters
System
STM32
RAM
192K Byte
ROM
1M Byte
Interface / Communication
Default network port (10/100M adaptive speed)
Optional CAN
Optional RS232 (rate 115.2Kbit/s)
Optional RS485 (half duplex)
Optional CAN
Optional RS232 (rate 115.2Kbit/s)
Optional RS485 (half duplex)
Power Supply
12V DC
Power Consumption
< 12W
Interface
M12 industrial interface * 2 Including power supply, GPIO and communication interfaces
Input and Output
By default, 2-in 2-out optocoupler isolated GPIO, compatible with 5-24V level
Support GPIO customization
Support GPIO customization
Notification Method
Buzzer, LED indicator
Size
3.7 in. L x 3.7 in. W x 1.4 in. H
95mm L× 95mm W× 36mmH
95mm L× 95mm W× 36mmH
Weight
12.3 oz./350g (different according to different configurations)
Working Temperature
-4°F / -20 °C to +122°F / +50 °C
Storage Temperature
-40°F / -40 °C to +185°C / +85 °C
Humidity
5% to 95% RH non-condensing
Waterproof and Dustproof Industrial Grade
IP67
Seismic Resistance
Vibration amplitude: 2cm
Vibration frequency: 1~10Hz
Vibration direction: up, down, left, right and random
Vibration frequency: 1~10Hz
Vibration direction: up, down, left, right and random
Electrostatic Discharge(ESD)
± 8kV contact discharge
RFID Performance Parameters
Tag Protocol
EPC C1 GEN2 / ISO18000-6C
Working Frequency
Default: 920MHz - 925MHz (China)
860Mhz - 960Mhz (it can be adjusted according to the requirements of different countries or regions)
860Mhz - 960Mhz (it can be adjusted according to the requirements of different countries or regions)
Work Mode
Default random frequency hopping, support fixed frequency
Output Power
10-30dBm adjustable, step power 1dB
Antenna Gain
2dbiC (circular polarization)
Read Distance
>2m (H47 tag), the actual distance is related to the tag and environment
Write Distance
0-1m (H47 tag), the actual distance is related to the tag and environment
Multi-tag Speed
>40pcs/s (H47 tag), the actual speed is related to the tag and environment
Third Party Application Development Support
Upper Computer Software
Windows / Linux / Android
System Programming Environment
VS2015
Accessories
Standard Hardware
M12 12Pin power supply +GPIO adapter cable, M12 8Pin communication adapter cable
Standard Software
Upper computer demo, demo user manual SDK, interface user manual
*
Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
