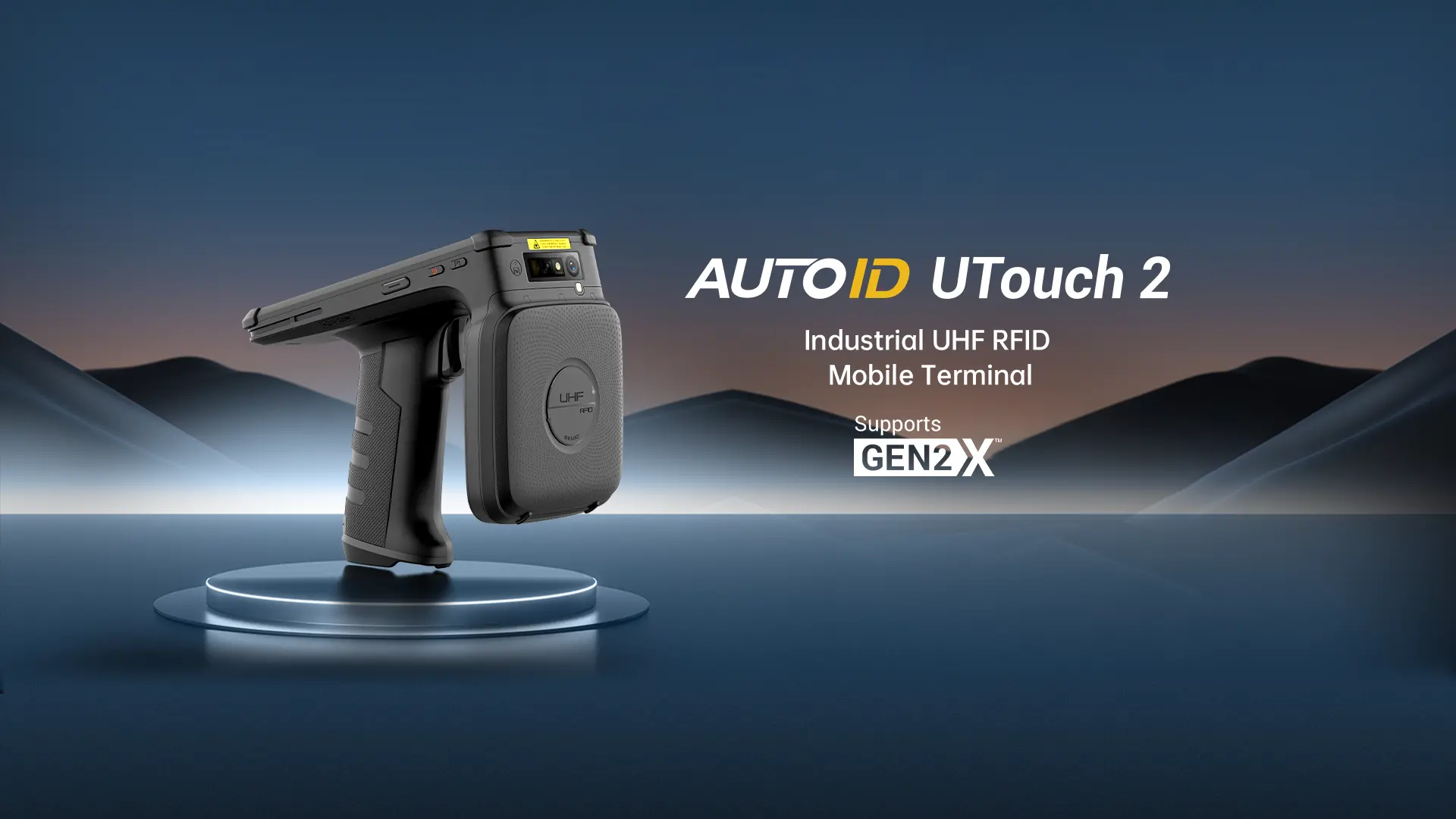

AUTOID UTouch2 UHF RFID Reader

  • CPU: Qualcomm 8-core 2.0GHz
  • Anti-Collision Algorithms, maximum group reading recognition speed up to 950 sheets/sec, recognition distance 0-20m
  • One-click switching of scenario-based label recognition modes
  • Built-in IFJ's new-generation E710 engine for more powerful performance
  • Weight: 22.2 oz/630 grams(with 11700mAh battery)
  • Drop specifications: 6.6 ft/2m drops to concrete
  • Sealing: IP67

AUTOID UTouch2 is a new generation UHF RFID device escorted with overall improvement compared with predecessor, it can read utmost 950pcs tags/s, different reading scenario can be changed at one tap, support multiple special tags and with upgraded algorithm to find the specific item precisely at your needs. With Octa core processor and wifi6 make it works like a duck in water in complexity environment, the 11700mAh dual battery will be a strong support for continuous work, this device also can resistant unparalleled 2.0m drops to concrete, that’s just a game changer in market.

Features

● Newly upgraded platform, Qualcomm 8-core 2.0GHz / Android11, runs smoothly even with multiple apps.

● New Wi-Fi6 technology, extremely fast transmission and experience uploading and downloading on the fly.

● 11700mAh extra large capacity battery, say good bye to battery life issues.

● Unique object finding algorithm, find specific items with precision.

● Convenient parameter setting, one-click switching of long distance, multi-label reading, multi-label fully reading and other recognition modes.

AUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID ReaderAUTOID UTouch2 UHF RFID Reader

Specifications
Physical Characteristics
Dimensions
6.7 in. L x 3.1 in. W x 0.6 in. T
170 mm L x 80 mm W x 16.4 mm T
Weight
22.2 oz. / 630 g with battery
Display
5 in. display with capacitive touch, 1440(H)×720(W)
Power
≧11700mAh (Main unit 5000mAH + Handle 6700mAh replaceable)
Bottom Type C USB port, support QC3.0 fast charging, intelligent recognition of PC and charger
SIM Card Slot
SIM+TF
Expansion Slot
Micro SD Card, compatible up to 256GB
Interface / Communication
Waterproof Type C USB interface, support USB2.0 HighSpeed, support OTG
Notifications
Sound, vibration, LED indicator light
Buttons
Power + Volume (+, -) + UHF + SCAN + Custom + On/Off button
Voice and Audio
Built-in single speaker, built-in dual microphones (with noise cancellation)
Performance Characteristics
CPU
Octa core 2.0GHz
Operating System
Android 11
Memory
4GB RAM / 64 GB Flash memory (optional 6GB+128GB)
User Environment
Operating Temp.
-4℉ / -20°C to +122℉ / +50°C
Storage Temp.
-40℉/-40°C to +140℉/+60°C(include battery)
-40℉/-40°C to +158℉/+70°C(no battery)
Humidity
5% to 95%, non-condensing
Drop Spec.
Multiple drops from 6.6 ft./2.0 m
Sealing
IP67
Electrostatic Discharge (ESD)
±15kV Air discharge, ±8kV direct discharge
Sensor
G-sensor, light sensor, distance sensor, electronic compass, gyroscope
Data Capture
Scanning
Standard range 2D imager scan engine
Front Camera
Fixed focus. 5MP
Rear Camera
Auto-focus, 13 MP, support double flashlights, PDAF phase focusing
RFID Read/Write(HF) (Special Order Option Only)
Read-write tag
Support ISO15693, ISO14443A/B (without encryption protocol), and support NFC protocol
Frequency
HF Frequency 13.56MHz
Reading Distance
ISO15693 typical value >5cm, ISO14443A typical value >4cm, ISO14443B typical value >1.5cm (label related)
RFID Read/Write(UHF)- Standard Configuration
Read-write tag
Support ISO-18000-6C / EPCC1G2
Antenna Parameter
5dBi circular polarization, default 902-928MHz
Frequency
840-960 MHz (customized according to country's regional regulations), default 902-928 MHz
Operation Mode
Operates as a frequency hopping spread spectrum (FHSS) or fixed frequency transmission mode
Output Power
1~33dBm
Reading Distance
≥10m @impinj H47 (practical distance subject to label and environment)
Writing Distance
0-6m@9662 white card (practical distance subject to label and environment)
Group Reading Speed
>950 frames/sec @impinj H47 (practical distance subject to label and environment)
Reading Rate
12 ms per separate character (32bits) on average
Writing Rate
60 ms per separate character (32bits) on average
Power Consumption
less than 8W (average)
GPS Location information collection
Positioning System
GPS+GLONASS+Beidou, support AGPS
Frequency
GPS: L1/L5
Beidou: B1
GLONASS: L1/L5
Accuracy
5-10meter (OPEN SKY)
Fingerprint (Option)
Fingerprint
Refer to the specifications for detailed parameters
Wireless Connectivity
WLAN-Protocol
IEEE 802.11a/b/g/n/ac/ax
WLAN-Frequency Range
Depending on the country (region), 2.4GHz is 2.412GHz-2.472GHz; 5GHz is 5.170GHz-5.825GHz
Security of WLAN
Refer to the specifications for detailed parameters
WWAN-Network
Refer to the specifications for detailed parameters
Accessories
Standard
Power adapter×1, Type C data communication cable×1
Additional
Single device charging cradle, quad battery charger, grip battery, OTG cable, and hand strap
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11.0
System Programming Environment
Eclipse, Android Studio
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
