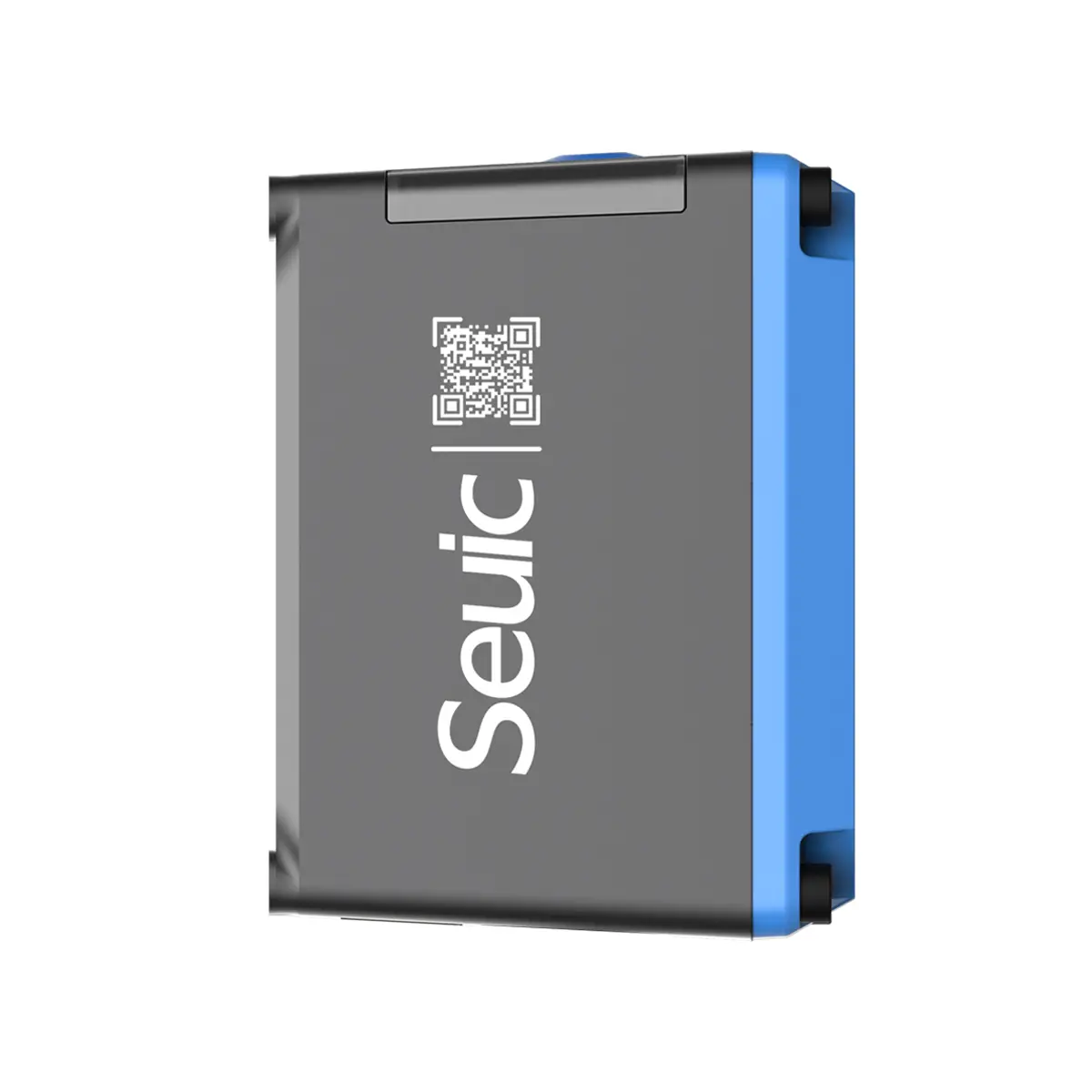

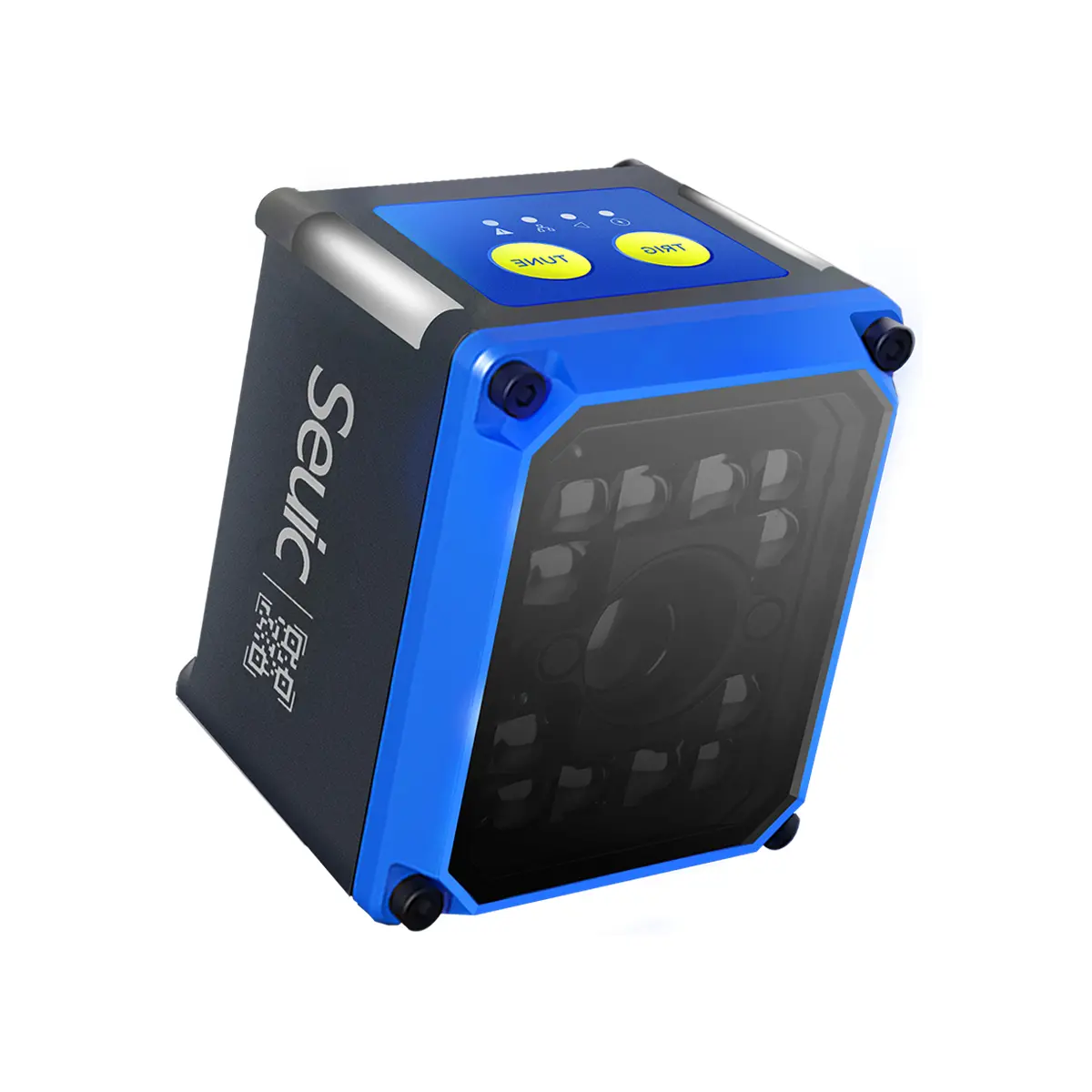

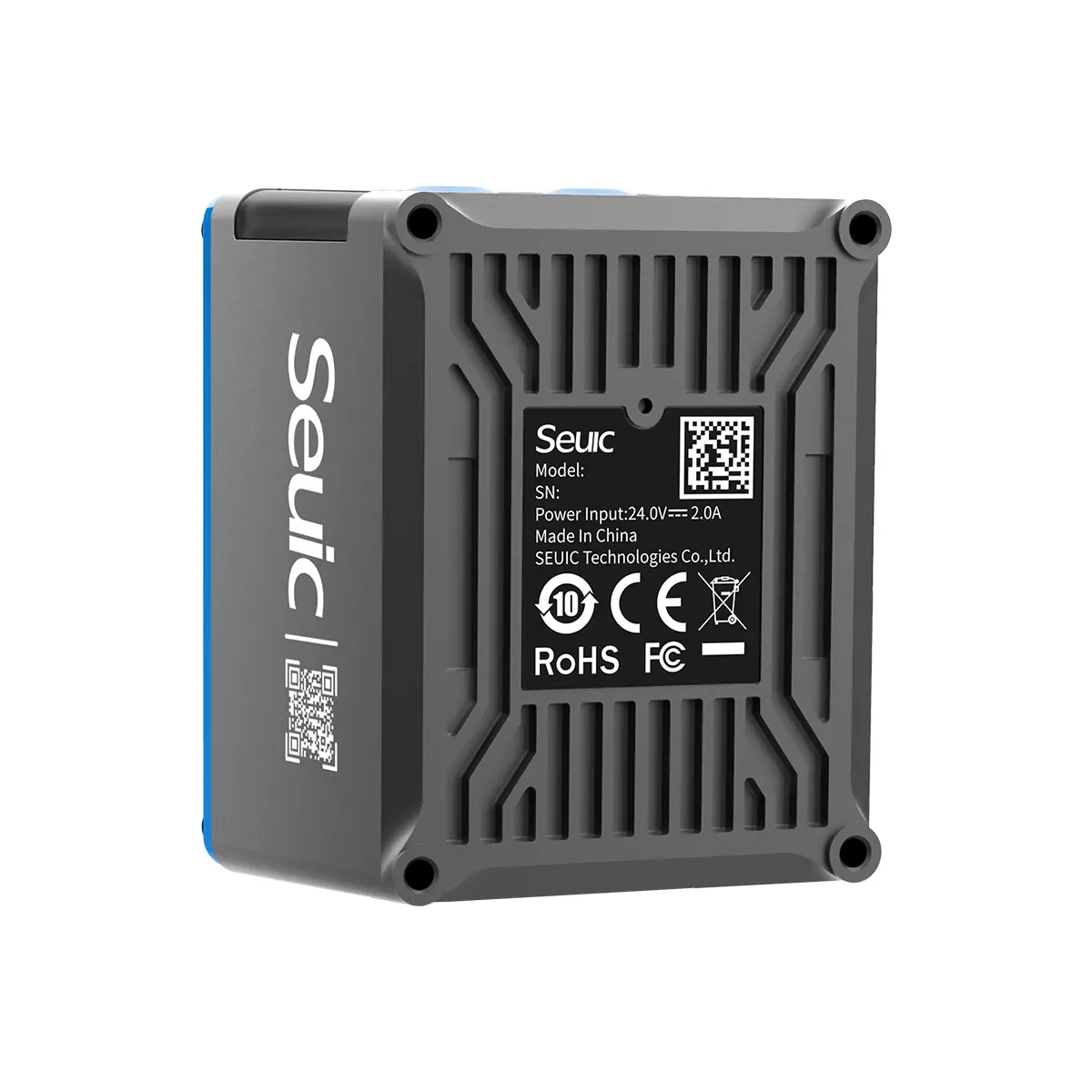

X4 AI Industrial Vision Fixed Reader

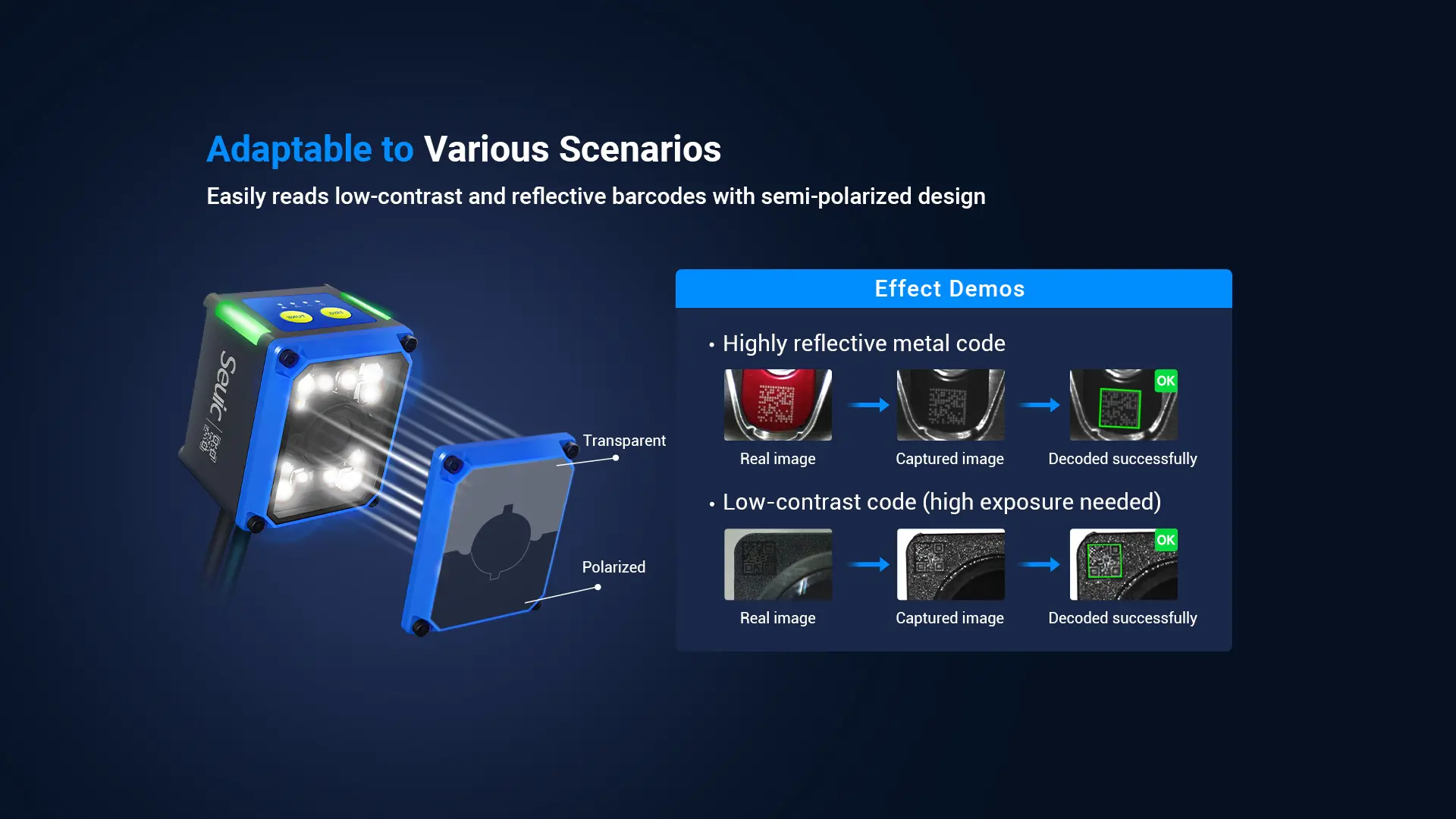

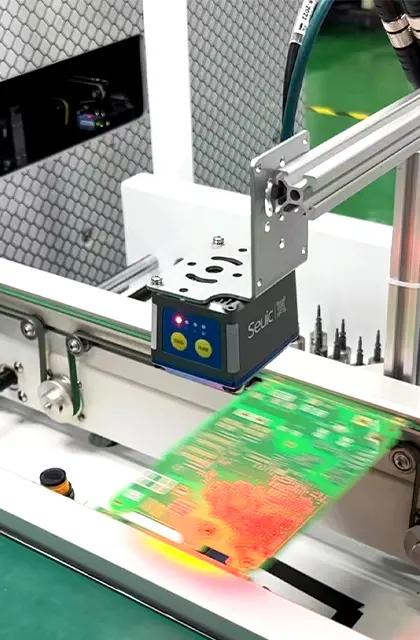

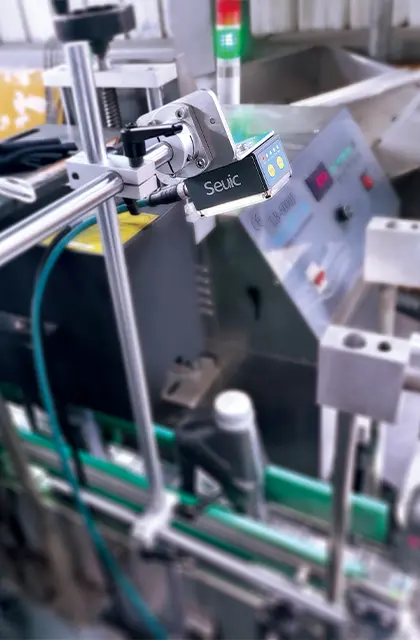

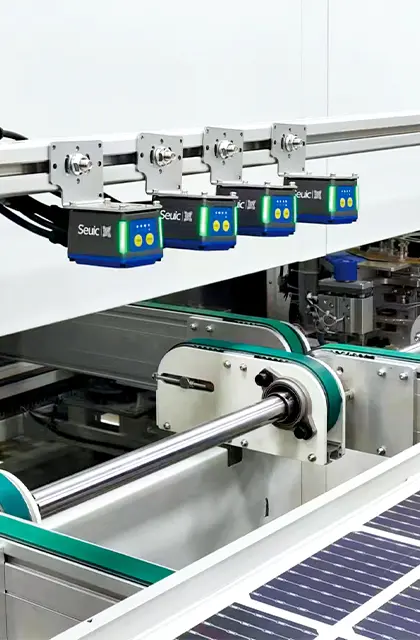

X4 AI is a high-performance industrial barcode reader designed for SMT lines, assembly operations, electronic test fixtures, and automation equipment. Powered by an Octa-core AI chipset, it delivers fast and accurate decoding with zero debugging and instant deployment. With advanced algorithms, image processing, and adaptive lighting, X4 AI ensures reliable reading of complex DPM and dynamic barcodes moving up to 3m/s.

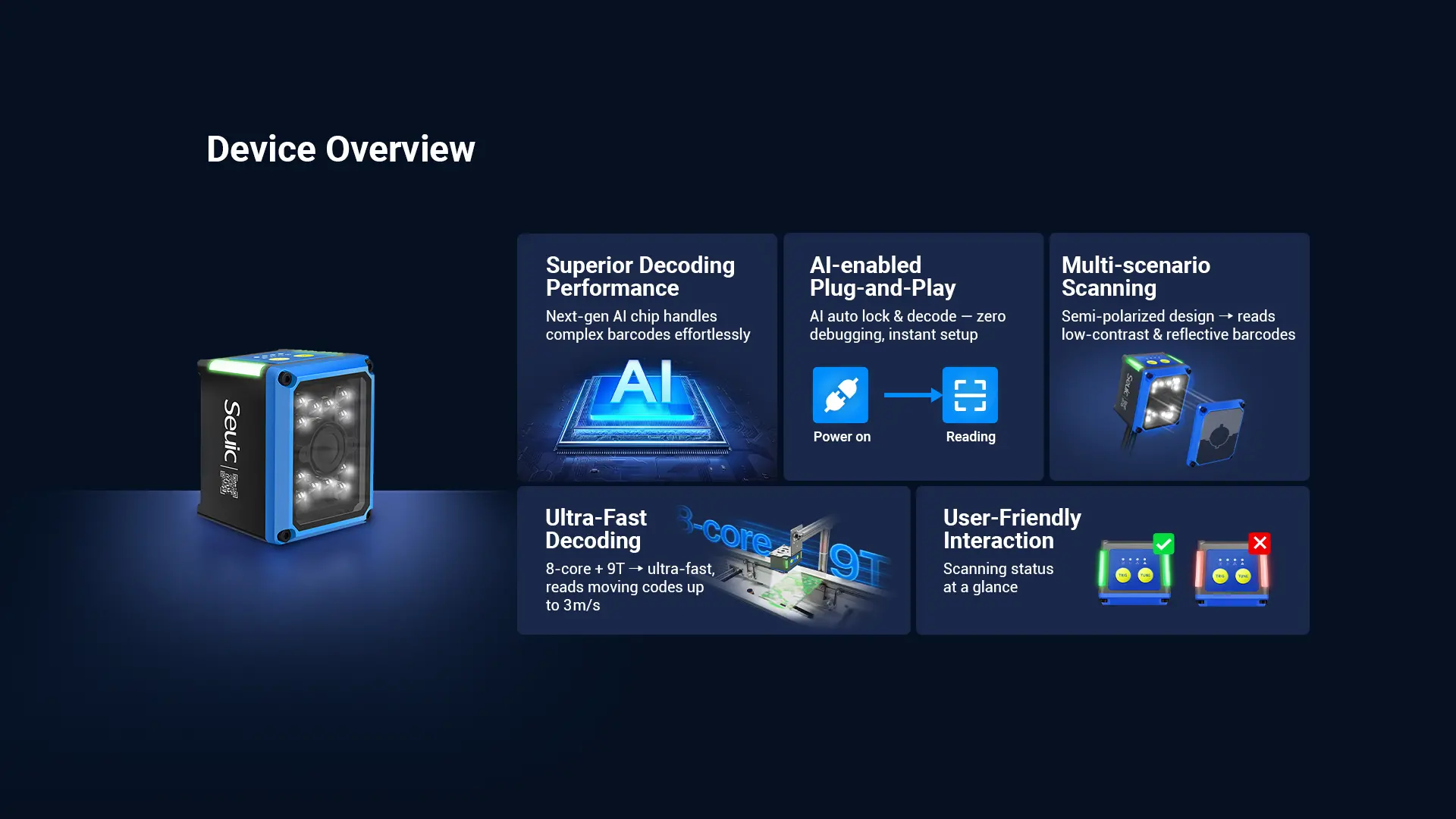

Features

● Octa-core parallel processing with 9T power ensures ultra-fast response and smooth decoding at 3 m/s.

● With a next-gen AI chip, it handles complex barcodes effortlessly.

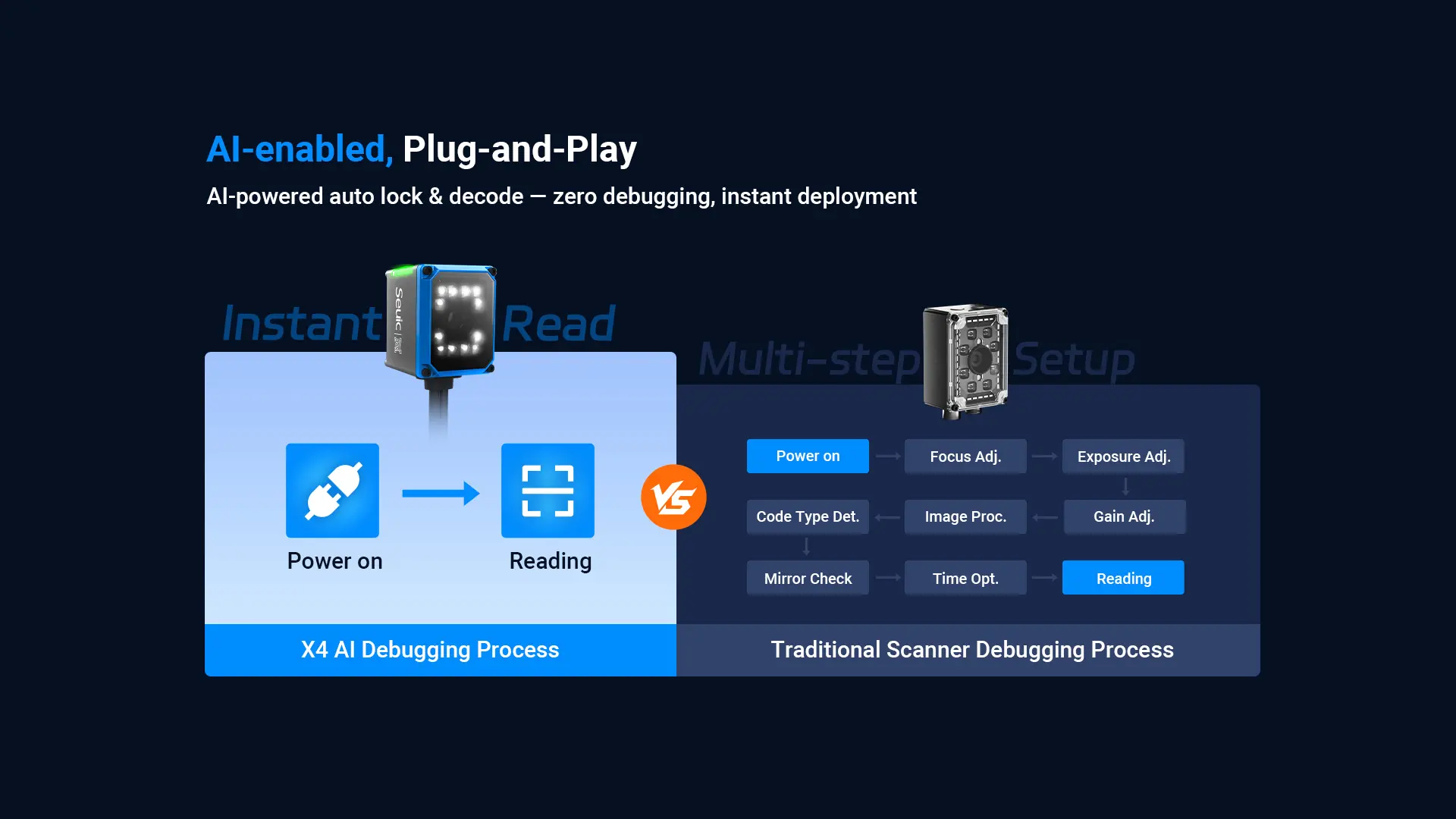

● AI-powered auto lock & decode — zero debugging, instant deployment.

X4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed ReaderX4 AI Industrial Vision Fixed Reader

Specifications
Receiver
Sensor
CMOS Image Sensor with global shutter
Number of Pixels
1.3M, 1280 x 1024

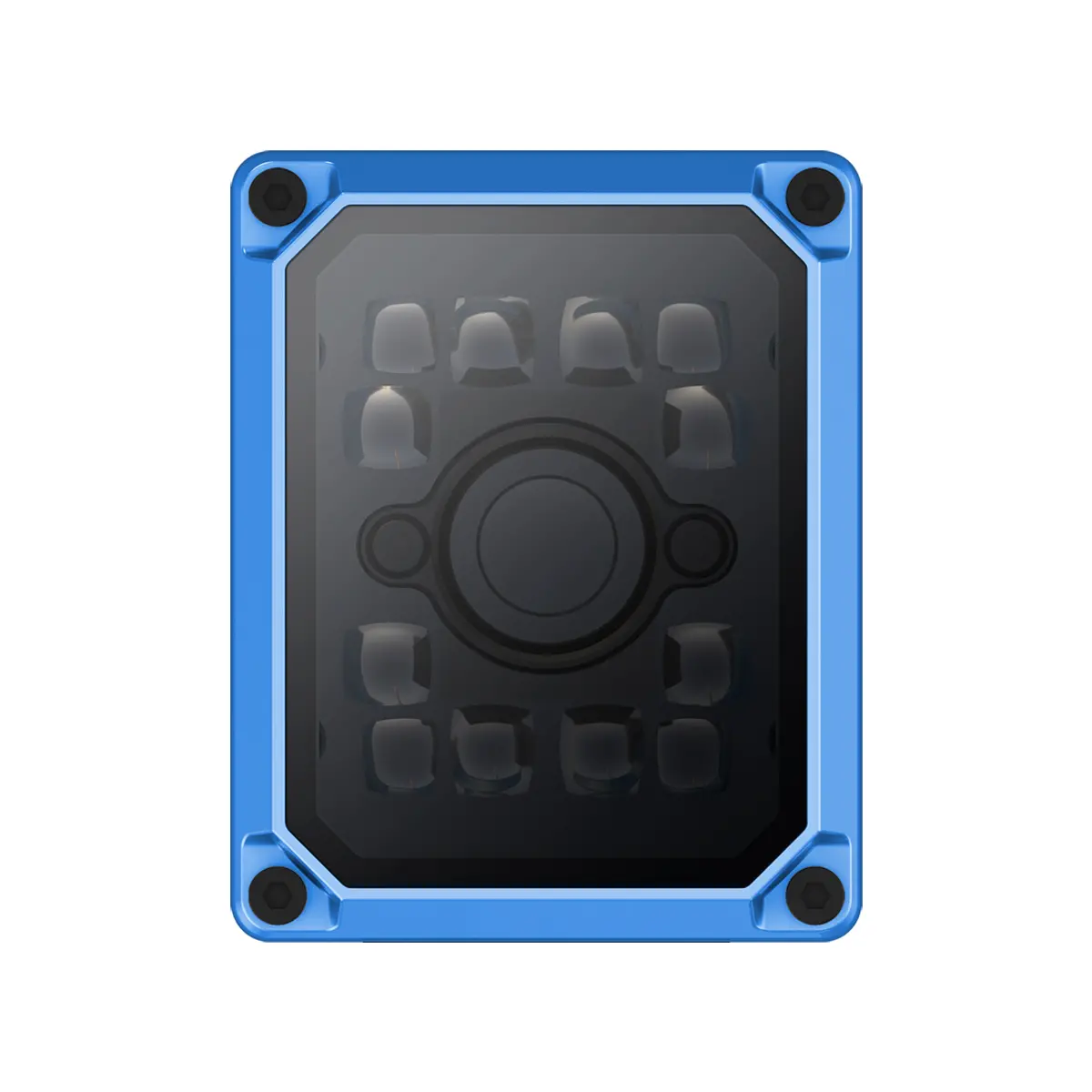

Light Emitter
Light Source
High-intensity red LED or white LED
Aimer
Laser dual-point positioning aimer Class II
Focus Adjustment
Focus Adjustment
X4 AI (Standard): 50mm to 1000mm adjustable
X4W AI (Wide View): 50mm to 500mm adjustable
Reading Specifications
Supported Symbol
1D: Code128, GS1 128, Code39, Code93, codabar, Interleaved 2 of 5, EAN/UPC
2D: QR, DataMatrix (ECC200), PDF417, Micro PDF417
Minimum Resolution
1D: 3.3mil
2D: 2.0mil
I/O Specifications
Control Input
Points: 2
Input type: Bidirectional voltage input
Maximum rating: 30V
Minimum ON voltage: ＜4V
Maximum OFF current: 0.001A
Control Output
Points: 3
Output type: 3 optocoupler output
Maximum rating: 30V
Minimum load current: 1output: 50mA or less, 3-output total: 100mA or less
Leakage current when OFF: 0.1mA or less
Residual voltage when ON: 1V or less
Ethernet
Supported protocol: TCP/UDP TCP Client, TCP Server, FTP, Profinet, MELSEC, Ethernet/IP, ModBusTcp(poll/slave), Fins
Serial Communication
Refer to the specifications for detailed parameters
USB
Communication standard: USB 2.0 Full Speed compliant
Environmental Resistance
Enclosure Rating
IP67
Ambient Temperature
0° ~ 50°C
Ambient Storage Temperature
-20°C ~70°C
Relative Humidity
5% to 95% RH (No condensation)
Storage Ambient Humidity
5% to 95% RH (No condensation)
Ambient Light
0~10000 lux
Operating Environment
No dust or corrosive gas present
Rating
Power Supply Voltage
10~30V DC
Current Consumption
0.5 ~ 1.5A
Weight
Weight
Approx.220g
Dimensions
Dimensions (L x W x H)
61.2mm x 48.7mm x 45.55mm
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
